Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
DPC-20-500 PWR XFMR LAMINATED 10VA TH Signal Transformer	2,586	10.31	RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 1A, Series 500mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms
DPC-28-360 PWR XFMR LAMINATED 10VA TH Signal Transformer	3,934	10.31	RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 720mA, Series 360mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms
DP-241-5-48 PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	3,913	10.31	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	48V	250mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 36.30mm W	42.80mm	2500Vrms
DP-241-5-56 PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	3,764	10.31	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	56V	220mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 36.30mm W	42.80mm	2500Vrms
DPC-10-1000 PWR XFMR LAMINATED 10VA TH Signal Transformer	3,082	10.31	RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 2A, Series 1A	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms
DPC-120-85 PWR XFMR LAMINATED 10VA TH Signal Transformer	2,115	10.31	RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 60V, Series 120V	Parallel 170mA, Series 85mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms
DPC-56-180 PWR XFMR LAMINATED 10VA TH Signal Transformer	3,331	10.31	RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 360mA, Series 180mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms

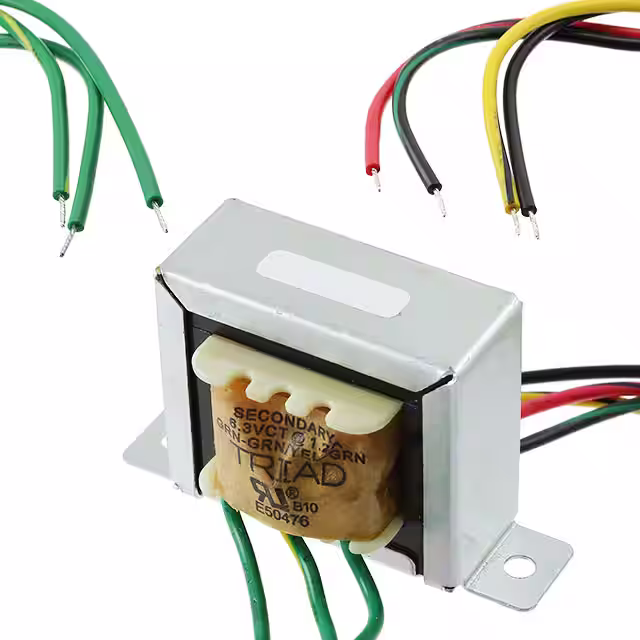

F-314X PWR XFMR LAMINATED 7.56VA CHAS Triad Magnetics	2,308	10.37	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	6.3V	1.2A	Dual	Single	Yes	7.56VA	Chassis Mount	PC Pin	71.45mm L x 41.28mm W	41.28mm	2500Vrms
241-5-10L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	3,547	10.38	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	10V	1.2A	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-120L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	2,810	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	120V	100mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-12L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	3,410	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	12.6V	1A	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-16L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	2,618	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	16V	800mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-20L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	2,864	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	20V	600mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-24L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	2,462	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	24V	500mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-28L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	3,720	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	28V	420mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-36L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	3,215	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	36V	350mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-48L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	2,913	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	48V	250mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-56L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	2,922	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	56V	220mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
DP-241-4-10L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,868	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	10V	600mA	Dual	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-16L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	2,575	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	16V	400mA	Dual	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
