Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
FP10-1200-B PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,693	11.12	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 2.4A, Series 1.2A	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
FP16-750-B PWR XFMR LAMINATED 12VA TH Triad Magnetics	3,871	11.12	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 1.5A, Series 750mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
FP34-340-B PWR XFMR LAMINATED 12VA TH Triad Magnetics	3,274	11.12	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 17V, Series 34V	Parallel 680mA, Series 340mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
FP56-200-B PWR XFMR LAMINATED 6VA TH Triad Magnetics	2,760	11.12	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 400mA, Series 200mA	Dual	Dual	No	6VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
F-168XP PWR XFMR LAMINATED 4.5VA TH Triad Magnetics	3,977	11.12	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 15V, Series 32V	Parallel 195mA, Series 50mA	Single	Dual	Yes	4.5VA	Through Hole	PC Pin	60.33mm L x 31.75mm W	36.45mm	1500Vrms
FS120-05 PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,603	11.14	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 60V, Series 120V	Parallel 100mA, Series 50mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
FS48-125 PWR XFMR LAMINATED 6VA TH Triad Magnetics	2,084	11.14	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 250mA, Series 125mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
FS56-110 PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,610	11.14	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 220mA, Series 110mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
FS10-2000-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	3,799	11.20	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 4A, Series 2A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	4200Vrms
FS16-1250-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,164	11.20	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 2.5A, Series 1.25A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	4200Vrms
FS28-700-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	3,424	11.20	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 1.4A, Series 700mA	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	4200Vrms
FS36-550-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,629	11.20	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 1.1A, Series 550mA	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	4200Vrms
FS56-350-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,874	11.20	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 700mA, Series 350mA	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	4200Vrms

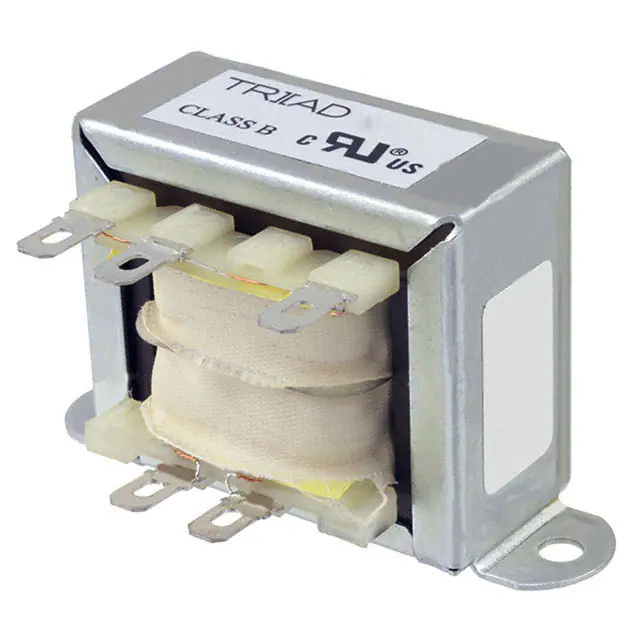

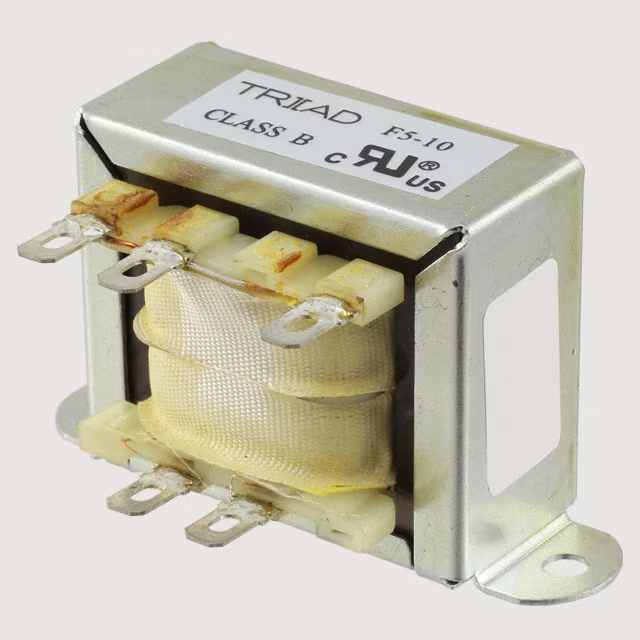

F5-10 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	2,483	11.24	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	10V	1.2A	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC

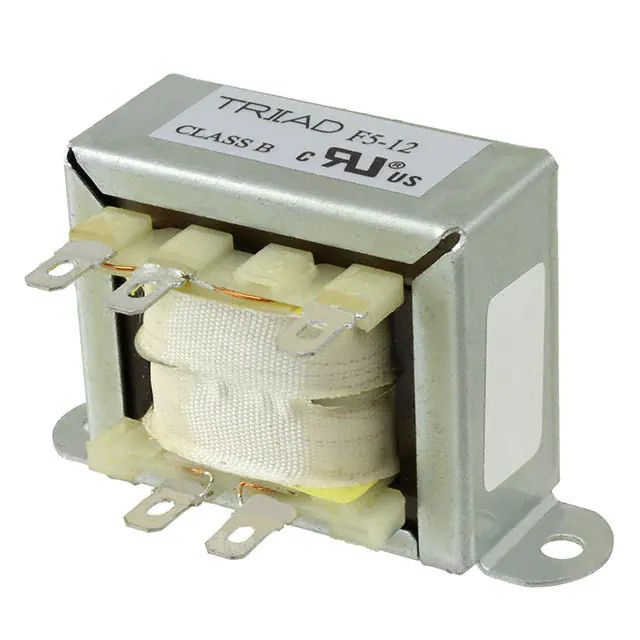

F5-12 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	3,234	11.35	RFQ	Datasheet	Bulk,Bulk	Quick Pack	Active	Laminated Core	115V	12.6V	1A	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
F5-120 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	3,792	11.24	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	120V	100mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC

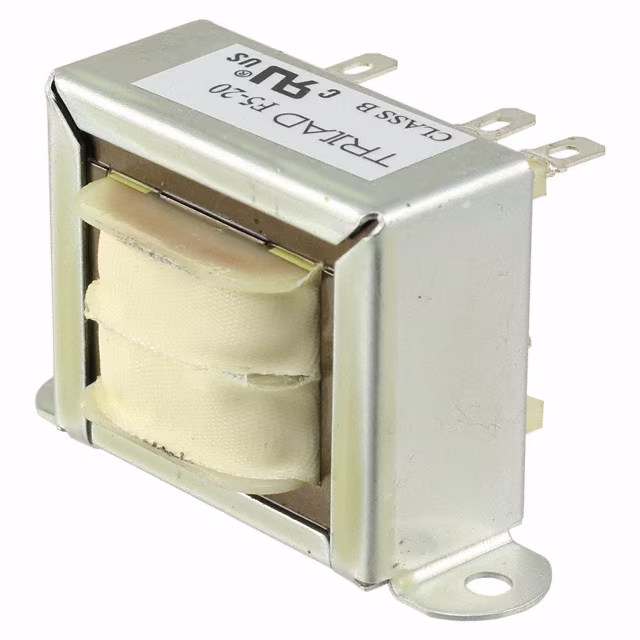

F5-20 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	3,511	11.24	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	20V	600mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC

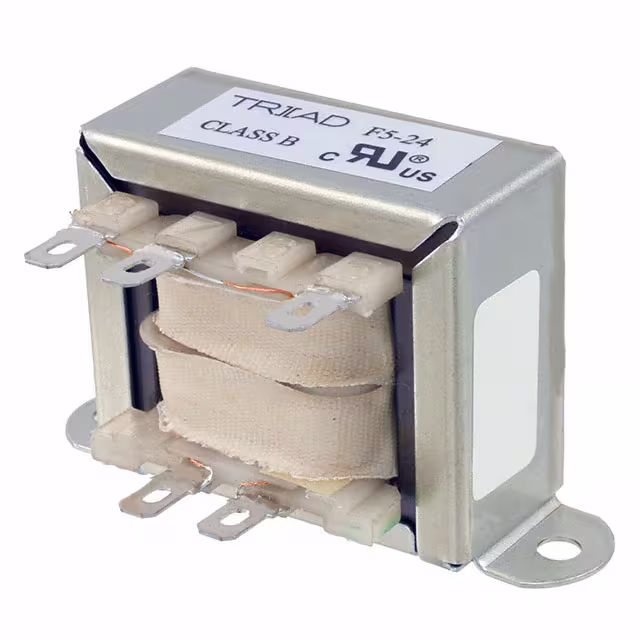

F5-24 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	2,179	11.24	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	24V	500mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
F5-28 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	2,361	11.24	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	28V	420mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC

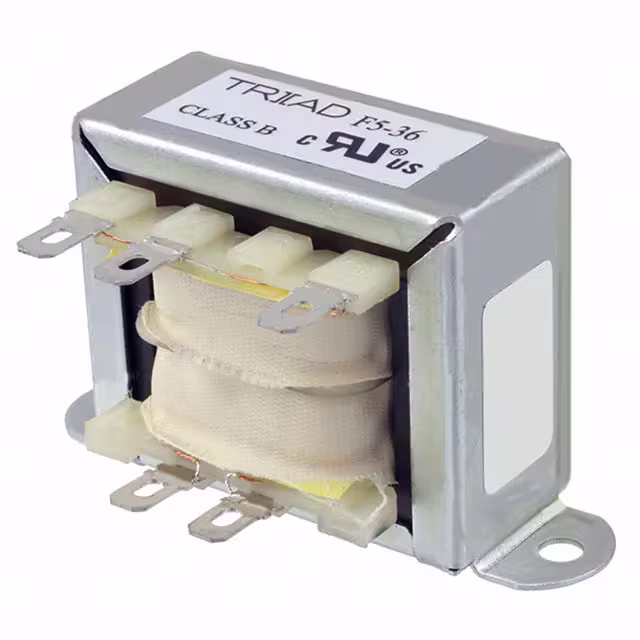

F5-36 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	3,270	11.24	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	36V	350mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
