Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
F20-600 PWR XFMR LAMINATED 12VA TH Triad Magnetics	3,732	11.95	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 10V, Series 20V	Parallel 1.2A, Series 600mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms
F-3153XP PWR XFMR LAMINATED 7.5VA TH Triad Magnetics	2,201	11.95	RFQ	Datasheet	Box	Dual Primary	Active	Laminated Core	115V, 230V	Parallel 15V, Series 30V	Parallel 500mA, Series 250mA	Dual	Dual	No	7.5VA	Through Hole	PC Pin	71.42mm L x 36.50mm W	41.28mm	1500Vrms
MPL-6-15 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	3,384	11.97	RFQ	Datasheet	Bulk	MPL	Active	Semi-Toroidal	115V, 230V	Parallel 5V, Series 15V	Parallel 135mA, Series 35mA	Dual	Dual	Yes	6VA	Through Hole	PC Pin	47.60mm L x 39.70mm W	21.60mm	1500Vrms
F-217X PWR XFMR LAMINATED 14.4VA CHAS Triad Magnetics	2,316	12.01	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	12V	1.2A	Single	Single	No	14.4VA	Chassis Mount	Wire Leads	82.55mm L x 41.28mm W	50.80mm	1500Vrms
F-6X PWR XFMR LAMINATED 15VA CHAS MT Triad Magnetics	3,429	12.01	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	2.5V	6A	Single	Single	Yes	15VA	Chassis Mount	Wire Leads	84.12mm L x 44.45mm W	49.20mm	2500Vrms
PC-16-1500 PWR XFMR LAMINATED 24VA TH Signal Transformer	2,196	12.09	RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 3A, Series 1.5A	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms
PC-20-1200 PWR XFMR LAMINATED 24VA TH Signal Transformer	2,694	12.09	RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 10V, Series 20V	Parallel 2.4A, Series 1.2A	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms
PC-28-800 PWR XFMR LAMINATED 24VA TH Signal Transformer	2,883	12.09	RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 1.6A, Series 800mA	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms
PC-40-600 PWR XFMR LAMINATED 24VA TH Signal Transformer	2,334	12.09	RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 20V, Series 40V	Parallel 1.2A, Series 600mA	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms
PC-120-200 PWR XFMR LAMINATED 24VA TH Signal Transformer	3,019	12.09	RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 400mA, Series 200mA	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms
PC-56-420 PWR XFMR LAMINATED 24VA TH Signal Transformer	2,094	12.09	RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 840mA, Series 420mA	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms

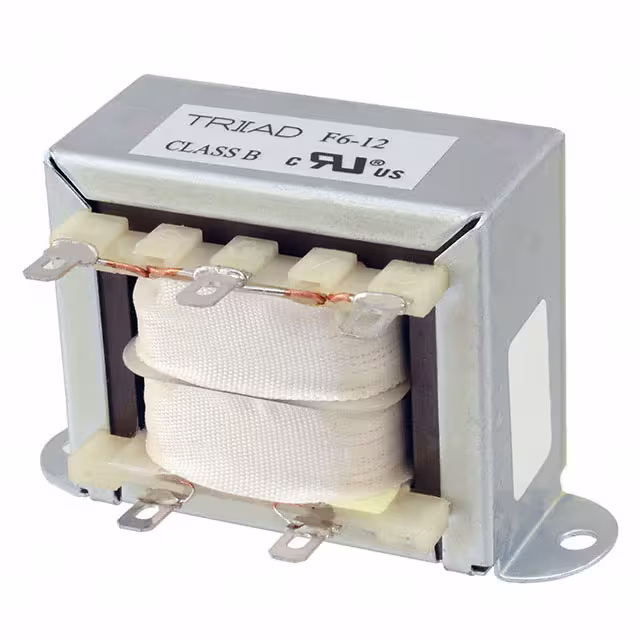

F6-12 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	3,411	12.16	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	12.6V	2.5A	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
PC-12-2000 PWR XFMR LAMINATED 24VA TH Signal Transformer	2,774	12.31	RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 4A, Series 2A	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms

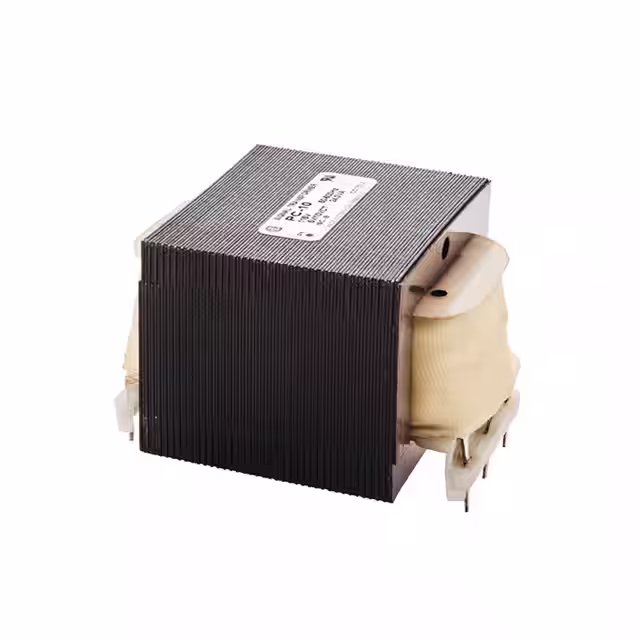

PC-10-2400 PWR XFMR LAMINATED 24VA TH Signal Transformer	3,639	12.31	RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 4.8A, Series 2.4A	Single	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms
VPS12-2000-B PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	3,871	12.40	RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 4A, Series 2A	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	58.67mm	4000Vrms
VPS16-1600-B PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	2,439	12.40	RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 3.2A, Series 1.6A	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 33.27mm W	58.67mm	4000Vrms
VPS24-1000-B PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	2,582	12.40	RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 2A, Series 1A	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	58.67mm	4000Vrms
VPS36-700-B PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	3,595	12.40	RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 1.4A, Series 700mA	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	71.37mm	4000Vrms
FP10-1200 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,227	12.48	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 2.4A, Series 1.2A	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	26.97mm	2000Vrms
DST-6-10 PWR XFMR LAMINATED 20VA TH Signal Transformer	2,350	12.53	RFQ	Datasheet	Bulk	DST	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 4A, Series 2A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
