Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
DST-6-120 PWR XFMR LAMINATED 20VA TH Signal Transformer	3,069	18.46	RFQ	Datasheet	Bulk	DST	Active	Laminated Core	115V, 230V	Parallel 60V, Series 120V	Parallel 320mA, Series 160mA	Dual	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
DST-6-48 PWR XFMR LAMINATED 20VA TH Signal Transformer	2,293	12.53	RFQ	Datasheet	Bulk	DST	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 800mA, Series 400mA	Dual	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
DST-6-56 PWR XFMR LAMINATED 20VA TH Signal Transformer	2,260	12.53	RFQ	Datasheet	Bulk	DST	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 700mA, Series 350mA	Dual	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
CL2-20-12 PWR XFMR LAMINATED 20VA TH Signal Transformer	2,422	12.62	RFQ	Datasheet	Bulk	CL2	Active	Laminated Core	115V, 230V	12V	1.66A	Dual	Single	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	41.30mm	4000Vrms

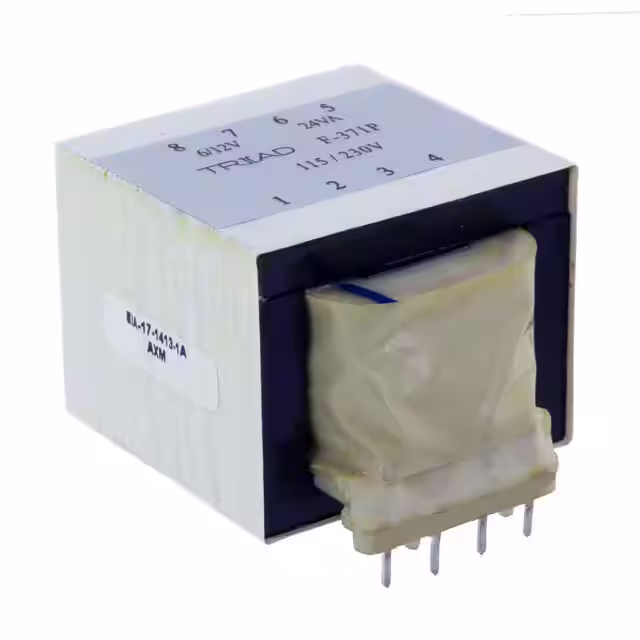

F-371P PWR XFMR LAMINATED 24VA TH Triad Magnetics	3,328	12.62	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 4A, Series 2A	Dual	Dual	No	24VA	Through Hole	PC Pin	41.28mm L x 57.15mm W	34.93mm	1500Vrms
F-379P PWR XFMR LAMINATED 24VA TH Triad Magnetics	3,377	12.62	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 60V, Series 120V	Parallel 400mA, Series 200mA	Dual	Dual	No	24VA	Through Hole	PC Pin	41.28mm L x 57.15mm W	34.93mm	1500Vrms

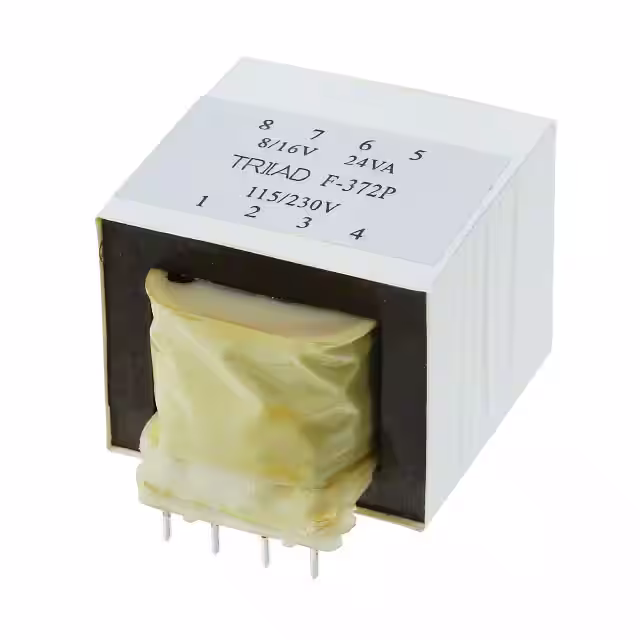

F-372P PWR XFMR LAMINATED 24VA TH Triad Magnetics	2,898	12.62	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 3A, Series 1.5A	Dual	Dual	No	24VA	Through Hole	PC Pin	41.28mm L x 57.15mm W	34.93mm	1500Vrms
241-6-28 PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	2,362	12.66	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	28V	1.1A	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.60mm L x 44.30mm W	49.80mm	2500Vrms
241-6-36 PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	3,115	12.66	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	36V	850mA	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.60mm L x 44.30mm W	49.80mm	2500Vrms
241-6-120 PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	2,488	12.66	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	120V	250mA	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.60mm L x 44.30mm W	49.80mm	2500Vrms
241-6-48 PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	3,095	12.66	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	48V	630mA	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.60mm L x 44.30mm W	49.80mm	2500Vrms
241-6-56 PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	2,013	12.66	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	56V	540mA	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.60mm L x 44.30mm W	49.80mm	2500Vrms
IF-2-12 PWR XFMR SEMI-TORO 2VA TH Signal Transformer	2,779	12.71	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 6V, Series 12V	Parallel 340mA, Series 170mA	Dual	Dual	No	2VA	Through Hole	PC Pin	53.00mm L x 44.00mm W	17.60mm	4000Vrms
IF-2-20 PWR XFMR SEMI-TORO 2VA TH Signal Transformer	3,858	12.71	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 10V, Series 20V	Parallel 200mA, Series 100mA	Dual	Dual	No	2VA	Through Hole	PC Pin	53.00mm L x 44.00mm W	17.60mm	4000Vrms
IF-2-24 PWR XFMR SEMI-TORO 2VA TH Signal Transformer	2,950	12.71	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 170mA, Series 85mA	Dual	Dual	No	2VA	Through Hole	PC Pin	53.00mm L x 44.00mm W	17.60mm	4000Vrms
IF-2-30 PWR XFMR SEMI-TORO 2VA TH Signal Transformer	3,176	12.71	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 140mA, Series 70mA	Dual	Dual	No	2VA	Through Hole	PC Pin	53.00mm L x 44.00mm W	17.60mm	4000Vrms
IF-2-34 PWR XFMR SEMI-TORO 2VA TH Signal Transformer	3,031	12.71	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 17V, Series 34V	Parallel 120mA, Series 60mA	Dual	Dual	No	2VA	Through Hole	PC Pin	53.00mm L x 44.00mm W	17.60mm	4000Vrms
IF-2-40 PWR XFMR SEMI-TORO 2VA TH Signal Transformer	3,625	12.71	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 20V, Series 40V	Parallel 100mA, Series 50mA	Dual	Dual	No	2VA	Through Hole	PC Pin	53.00mm L x 44.00mm W	17.60mm	4000Vrms
3FL10-1200 PWR XFMR LAMINATED 12VA TH Tamura	3,035	12.73	RFQ	Datasheet	Bulk	3FL	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 2.4A, Series 1.2A	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	27.05mm	1500Vrms
16-560-LPI PWR XFMR SEMI-TORO 9VA TH Signal Transformer	2,298	12.74	RFQ	Datasheet	Box	LPI	Active	Semi-Toroidal	115V, 230V	Parallel 8V, Series 16V	Parallel 1.12A, Series 560mA	Dual	Dual	No	9VA	Through Hole	PC Pin	60.20mm L x 42.10mm W	27.40mm	4000Vrms
