Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

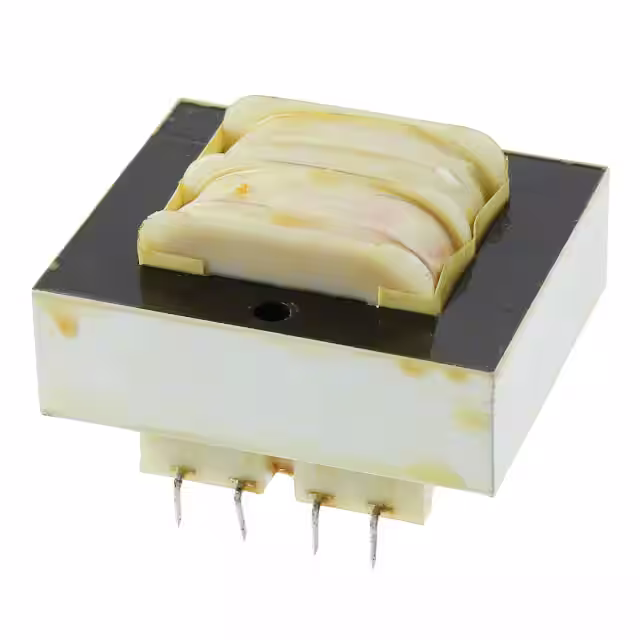

F10-2000 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,528	10.66	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 4A, Series 2A	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F120-160 PWR XFMR LAMINATED 20VA TH Triad Magnetics	3,682	10.66	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 320mA, Series 160mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F12-1600 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,825	10.66	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 3.2A, Series 1.6A	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F16-1250 PWR XFMR LAMINATED 20VA TH Triad Magnetics	3,079	10.66	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 2.5A, Series 1.25A	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F24-800 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,922	10.66	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 12V, Series 24V	Parallel 1.6A, Series 800mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F28-700 PWR XFMR LAMINATED 20VA TH Triad Magnetics	3,370	10.66	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 1.4A, Series 700mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F56-350 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,085	10.66	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 28 V, Series 56V	Parallel 700mA, Series 350mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
LP-56-100 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	2,317	10.71	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 28V, Series 56V	Parallel 200mA, Series 100mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	21.60mm	1500Vrms
LP-88-65 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	3,328	10.71	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 44V, Series 88V	Parallel 130mA, Series 65mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	21.60mm	1500Vrms
LP-120-50 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	3,688	10.71	RFQ	Datasheet	Box	LP	Active	Semi-Toroidal	115V, 230V	Parallel 60V, Series 120V	Parallel 100mA, Series 50mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	21.60mm	1500Vrms
LP-230-25 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	2,459	10.71	RFQ	Datasheet	Box	LP	Active	Semi-Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 50mA, Series 25mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	21.60mm	1500Vrms
ST-6-36 PWR XFMR LAMINATED 20VA TH Signal Transformer	3,230	10.81	RFQ	Datasheet	Box	ST	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 1.1A, Series 550mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
ST-6-10 PWR XFMR LAMINATED 20VA TH Signal Transformer	2,774	10.81	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 4A, Series 2A	Single	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
ST-6-48 PWR XFMR LAMINATED 20VA TH Signal Transformer	2,177	10.81	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 800mA, Series 400mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
ST-6-56 PWR XFMR LAMINATED 20VA TH Signal Transformer	2,566	10.81	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 700mA, Series 350mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
3FL40-300 PWR XFMR LAMINATED 12VA TH Tamura	2,300	10.88	RFQ	Datasheet	Bulk	3FL	Active	Laminated Core	115V, 230V	Parallel 20V, Series 40V	Parallel 600mA, Series 300mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	27.05mm	1500Vrms
ST-6-120 PWR XFMR LAMINATED 20VA TH Signal Transformer	3,800	10.90	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 320mA, Series 160mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
DPC-56-15 PWR XFMR LAMINATED 1VA TH Signal Transformer	2,100	10.93	RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 30mA, Series 15mA	Dual	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
F-3112X PWR XFMR LAMINATED 3.5VA CHAS MT Triad Magnetics	3,100	10.95	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	14V	250mA	Dual	Single	Yes	3.5VA	Chassis Mount	Wire Leads	60.33mm L x 38.10mm W	34.93mm	1500Vrms
MPC-X-12 PWR XFMR LAMINATED 10VA TH Signal Transformer	3,198	11.04	RFQ	Datasheet	Bulk	MPC	Active	Laminated Core	115V	Parallel 5V, Series 12V	Parallel 360mA, Series 60mA	Single	Dual	Yes	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.70mm	1500Vrms
