Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
DP-241-4-20L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,273	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	20V	300mA	Dual	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-24L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	2,641	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	24V	250mA	Dual	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-36L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,384	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	36V	170mA	Dual	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-48L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	2,998	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	48V	125mA	Dual	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
F4-120 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	2,836	10.48	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	120V	50mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	60.33mm L x 31.75mm W	34.93mm	2500VAC
F4-16 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	3,187	10.48	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	16V	400mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	60.33mm L x 31.75mm W	34.93mm	2500VAC
F4-20 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	3,427	10.48	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	20V	300mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	60.33mm L x 31.75mm W	34.93mm	2500VAC
F4-28 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	3,575	10.48	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	28V	200mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	60.33mm L x 31.75mm W	34.93mm	2500VAC
F4-36 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	3,595	10.48	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	36V	170mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	60.33mm L x 31.75mm W	34.93mm	2500VAC
F4-48 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	3,249	10.48	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	48V	125mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	60.33mm L x 31.75mm W	34.93mm	2500VAC
F4-56 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	3,459	10.48	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	56V	110mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	60.33mm L x 31.75mm W	34.93mm	2500VAC

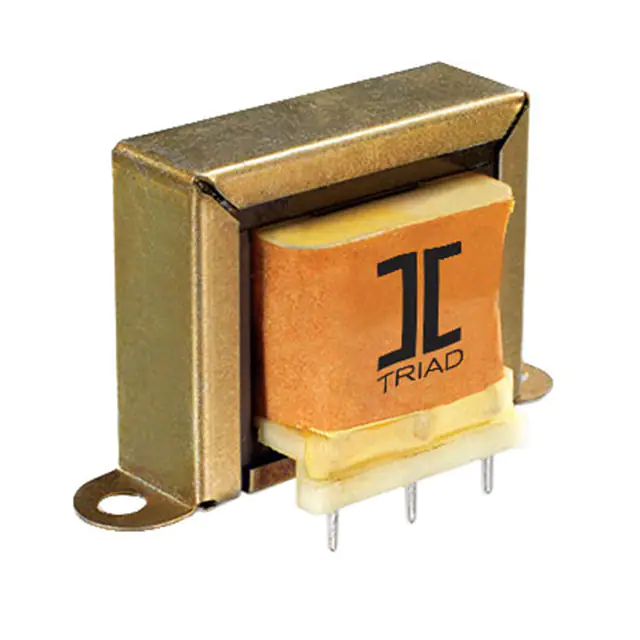

F-141XP PWR XFMR LAMINATED 4.5VA TH Triad Magnetics	3,547	10.48	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 4V, Series 8V	Parallel 1.124A, Series 562mA	Single	Dual	No	4.5VA	Through Hole	PC Pin	60.33mm L x 31.75mm W	36.50mm	1500Vrms
F-145XP PWR XFMR LAMINATED 4.5VA TH Triad Magnetics	3,359	10.48	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 38V, Series 76V	Parallel 120mA, Series 60mA	Single	Dual	No	4.5VA	Through Hole	PC Pin	60.33mm L x 31.75mm W	36.50mm	1500Vrms
F-146XP PWR XFMR LAMINATED 4.5VA TH Triad Magnetics	2,155	10.48	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 58V, Series 116V	Parallel 66mA, Series 33mA	Single	Dual	No	4.5VA	Through Hole	PC Pin	60.33mm L x 31.75mm W	36.50mm	1500Vrms
F-147XP PWR XFMR LAMINATED 4.5VA TH Triad Magnetics	2,699	10.48	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 20V, Series 40V	Parallel 224mA, Series 112mA	Single	Dual	No	4.5VA	Through Hole	PC Pin	60.33mm L x 31.75mm W	36.50mm	1500Vrms
F-161XP PWR XFMR LAMINATED 4.5VA TH Triad Magnetics	3,027	10.48	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 8.5V, Series 17V	Parallel 528mA, Series 264mA	Single	Dual	No	4.5VA	Through Hole	PC Pin	60.33mm L x 31.75mm W	36.50mm	1500Vrms
FS120-02 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,040	10.55	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 60V, Series 120V	Parallel 40mA, Series 20mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	2500Vrms
FS48-050 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,117	10.55	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 100mA, Series 50mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	2500Vrms
FS56-045 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,468	10.55	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 90mA, Series 45mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	2500Vrms
DPC-16-75 PWR XFMR LAMINATED 1.2VA TH Signal Transformer	2,986	10.58	RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 150mA, Series 75mA	Dual	Dual	No	1.2VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.15mm	1500Vrms
