Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

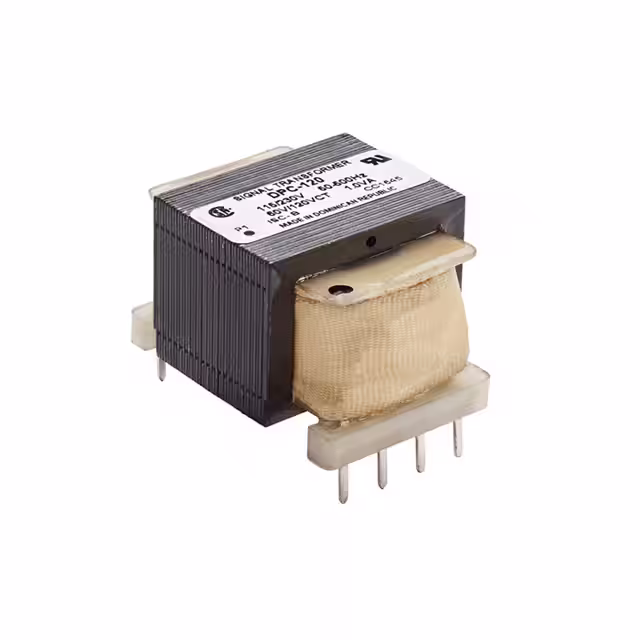

DPC-28-30 PWR XFMR LAMINATED 1VA TH Signal Transformer	2,249	9.42	RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 60mA, Series 30mA	Dual	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
DPC-34-25 PWR XFMR LAMINATED 1VA TH Signal Transformer	3,125	9.42	RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 17V, Series 34V	Parallel 50mA, Series 25mA	Dual	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
DPC-40-20 PWR XFMR LAMINATED 1VA TH Signal Transformer	2,880	9.42	RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 20V, Series 40V	Parallel 40mA, Series 20mA	Dual	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
PC-56-180 PWR XFMR LAMINATED 10VA TH Signal Transformer	3,024	9.43	RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 360mA, Series 180mA	Single	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms
DPC-120-35 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	2,481	9.44	RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 60V, Series 120V	Parallel 70mA, Series 35mA	Dual	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms

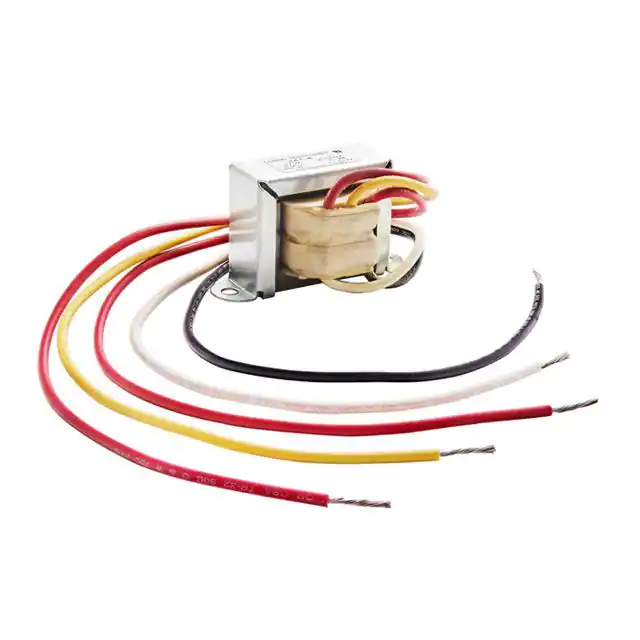

241-4-12L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,333	9.47	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	12.6V	500mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
241-4-20L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,220	9.47	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	20V	300mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-120 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	2,102	9.47	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	120V	50mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms

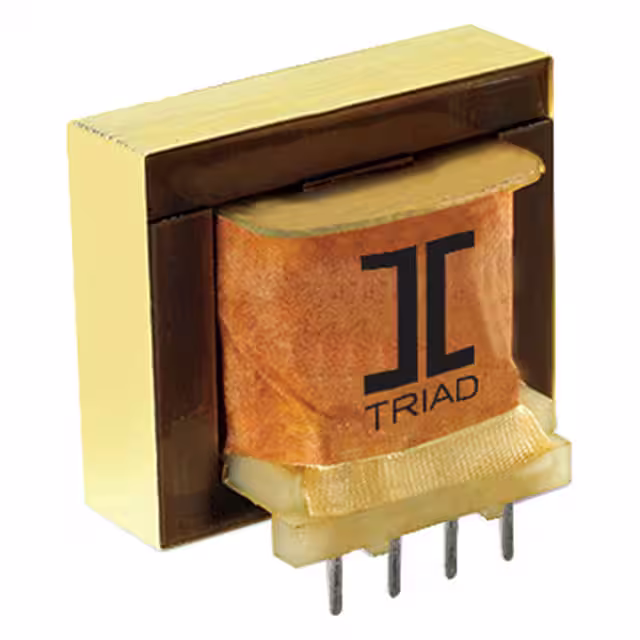

F-167P PWR XFMR LAMINATED 1.5VA TH Triad Magnetics	2,848	9.54	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 15V, Series 32V	Parallel 60mA, Series 20mA	Single	Dual	Yes	1.5VA	Through Hole	PC Pin	39.67mm L x 35.31mm W	30.15mm	1500Vrms
241-4-120L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,938	9.70	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	120V	50mA	Single	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
LP-40-60 PWR XFMR SEMI-TORO 2VA TH Signal Transformer	3,142	9.78	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 20V, Series 40V	Parallel 120mA, Series 60mA	Dual	Dual	No	2VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	16.50mm	1500Vrms
F12-1600-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	3,899	9.79	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 3.2A, Series 1.6A	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F16-1250-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,068	9.79	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 2.5A, Series 1.25A	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F28-700-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,641	9.79	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 1.4A, Series 700mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F36-550-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	3,004	9.79	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 1.1A, Series 550mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F48-400-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	3,097	9.79	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 800mA, Series 400mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
F56-350-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	2,473	9.79	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 28 V, Series 56V	Parallel 700mA, Series 350mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
FS28-040 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	3,072	9.80	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 80mA, Series 40mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	23.80mm	2500Vrms
FS36-030 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	3,943	9.80	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 60mA, Series 30mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	23.80mm	2500Vrms
FS10-110 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	2,498	9.80	RFQ	Datasheet	Bulk,Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 220mA, Series 110mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	2500Vrms
