Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
FP34-170-B PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,979	8.52	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 17V, Series 34V	Parallel 340mA, Series 170mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms
FP56-100-B PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,090	8.52	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 200mA, Series 100mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms
ST-5-12 PWR XFMR LAMINATED 12VA TH Signal Transformer	3,514	8.52	RFQ	Datasheet	Box	ST	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 2A, Series 1A	Single	Dual	No	12VA	Through Hole	PC Pin	47.80mm L x 39.60mm W	36.90mm	2500Vrms
ST-5-10 PWR XFMR LAMINATED 12VA TH Signal Transformer	2,298	8.52	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 2.4A, Series 1.2A	Single	Dual	No	12VA	Through Hole	PC Pin	47.80mm L x 39.60mm W	36.90mm	2500Vrms
ST-5-120 PWR XFMR LAMINATED 12VA TH Signal Transformer	2,949	8.52	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 200mA, Series 100mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.80mm L x 39.60mm W	36.90mm	2500Vrms
ST-5-48 PWR XFMR LAMINATED 12VA TH Signal Transformer	3,852	8.52	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 500mA, Series 250mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.80mm L x 39.60mm W	36.90mm	2500Vrms
ST-5-56 PWR XFMR LAMINATED 12VA TH Signal Transformer	2,413	8.52	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 440mA, Series 220mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.80mm L x 39.60mm W	36.90mm	2500Vrms
DST-4-56 PWR XFMR LAMINATED 6VA TH Signal Transformer	2,509	8.54	RFQ	Datasheet	Bulk	DST	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 220mA, Series 110mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.30mm L x 33.30mm W	33.30mm	2500Vrms

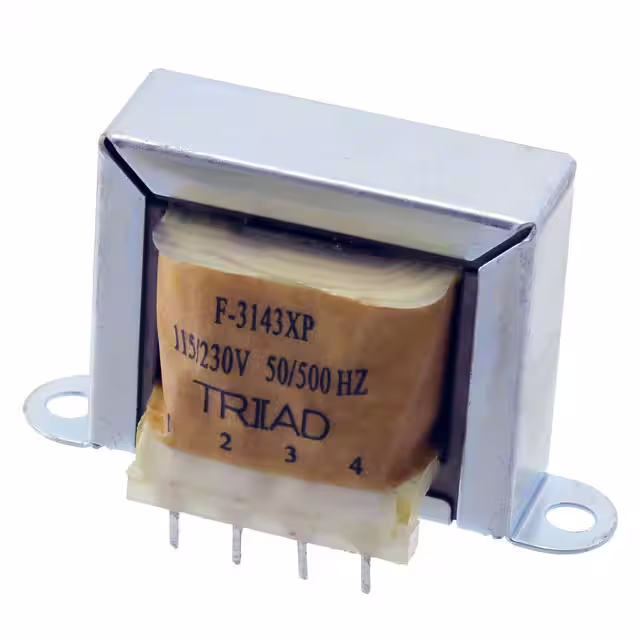

F-3143XP PWR XFMR LAMINATED 4.5VA CHAS MT Triad Magnetics	3,722	8.69	RFQ	Datasheet	Bulk,Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 15V, Series 30V	Parallel 300mA, Series 150mA	Dual	Dual	No	4.5VA	Chassis Mount	PC Pin	60.32mm L x 31.75mm W	36.50mm	1500Vrms

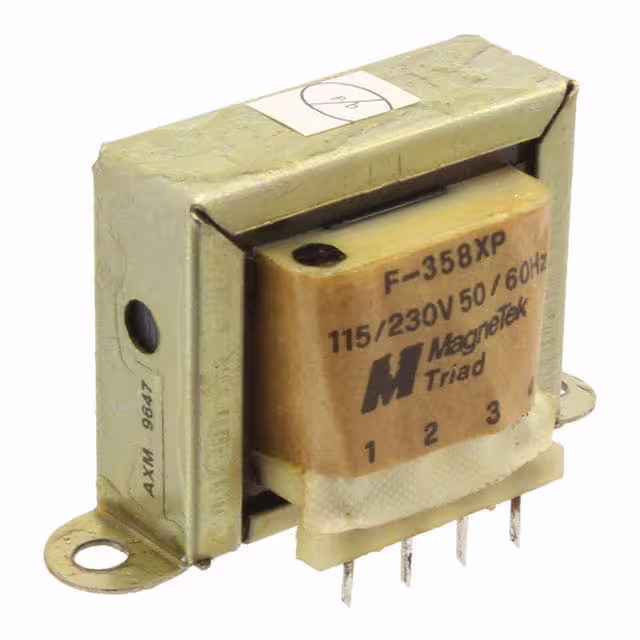

F-358XP PWR XFMR LAMINATED 4.5VA CHAS MT Triad Magnetics	3,308	8.55	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 450mA, Series 225mA	Dual	Dual	No	4.5VA	Chassis Mount	PC Pin	60.32mm L x 31.75mm W	36.50mm	1500Vrms

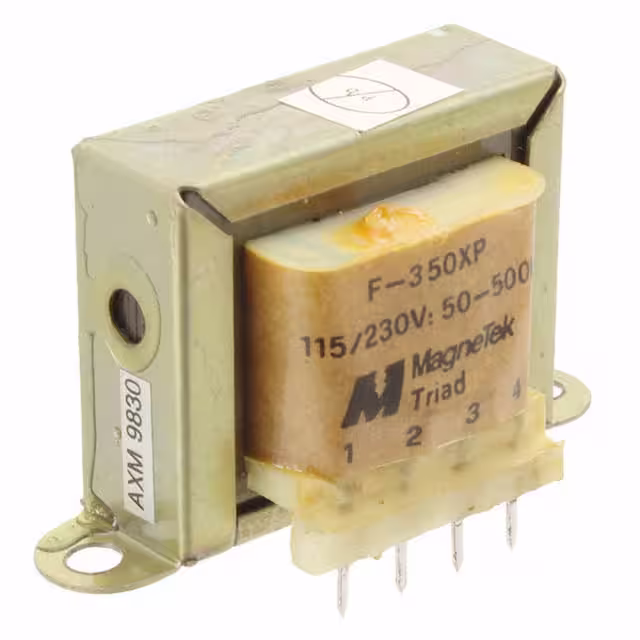

F-350XP PWR XFMR LAMINATED 4.5VA CHAS MT Triad Magnetics	3,011	8.55	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 360mA, Series 180mA	Dual	Dual	No	4.5VA	Chassis Mount	PC Pin	60.32mm L x 31.75mm W	36.50mm	1500Vrms
FP56-45 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,131	8.56	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 90mA, Series 45mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP16-150 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,621	8.56	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 300mA, Series 150mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms

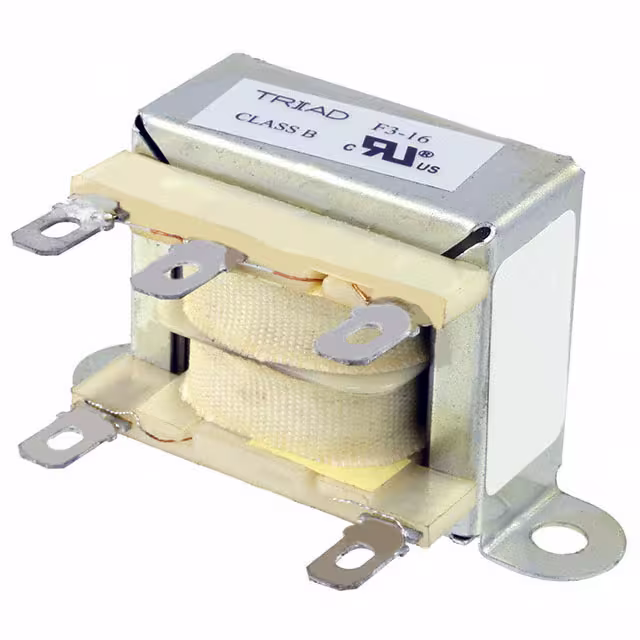

F3-16 PWR XFMR LAMINATED 2.4VA CHAS MT Triad Magnetics	3,712	8.57	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	16V	150mA	Single	Single	Yes	2.4VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	41.28mm L x 30.15mm W	30.15mm	2500VAC

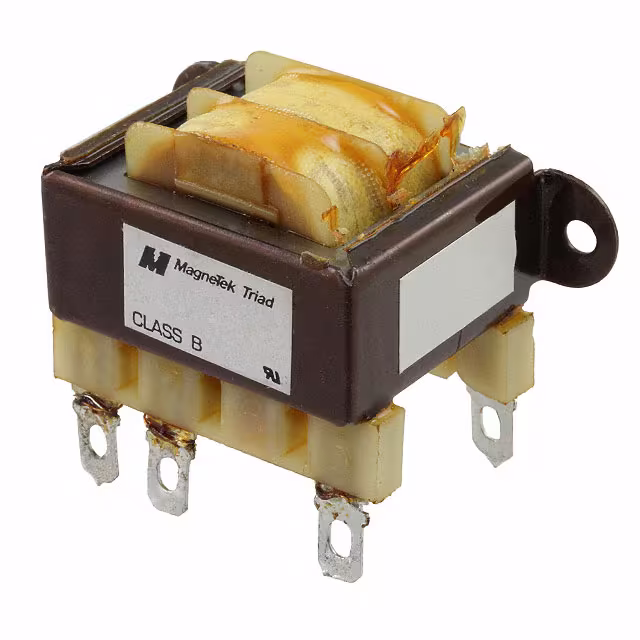

F3-20 PWR XFMR LAMINATED 2.4VA CHAS MT Triad Magnetics	2,697	8.57	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	20V	112mA	Single	Single	Yes	2.4VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	41.28mm L x 30.15mm W	30.15mm	2500VAC
F3-28 PWR XFMR LAMINATED 2.4VA CHAS MT Triad Magnetics	2,350	8.57	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	28V	85mA	Single	Single	Yes	2.4VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	41.28mm L x 30.15mm W	30.15mm	2500VAC
F3-48 PWR XFMR LAMINATED 2.4VA CHAS MT Triad Magnetics	3,657	8.57	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	48V	50mA	Single	Single	Yes	2.4VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	41.28mm L x 30.15mm W	30.15mm	2500VAC
F3-56 PWR XFMR LAMINATED 2.4VA CHAS MT Triad Magnetics	3,238	8.57	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	56V	20mA	Single	Single	Yes	2.4VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	41.28mm L x 30.15mm W	30.15mm	2500VAC
241-3-36L PWR XFMR LAMINATED 2.4VA CHAS MT Signal Transformer	3,216	8.57	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	36V	65mA	Single	Single	Yes	2.4VA	Chassis Mount	Wire Leads	52.60mm L x 29.60mm W	31.20mm	2500Vrms
241-4-16 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	2,368	8.62	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	16V	400mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms
