Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

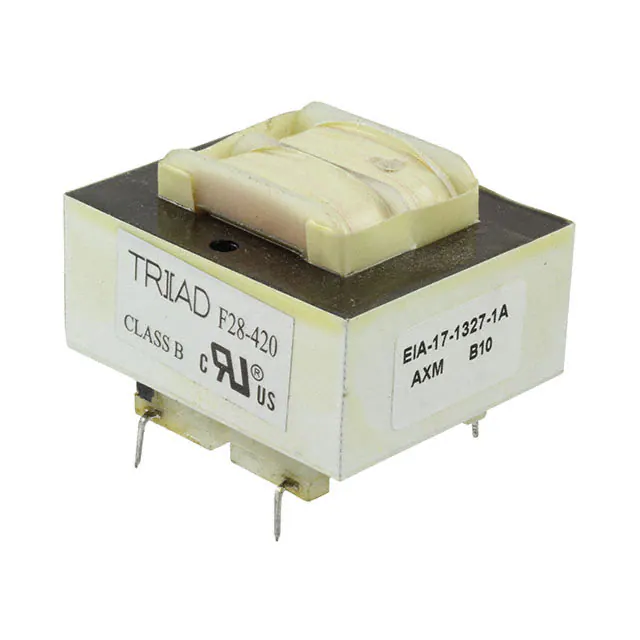

F28-420 PWR XFMR LAMINATED 12VA TH Triad Magnetics	3,723	8.74	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 840mA, Series 420mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms

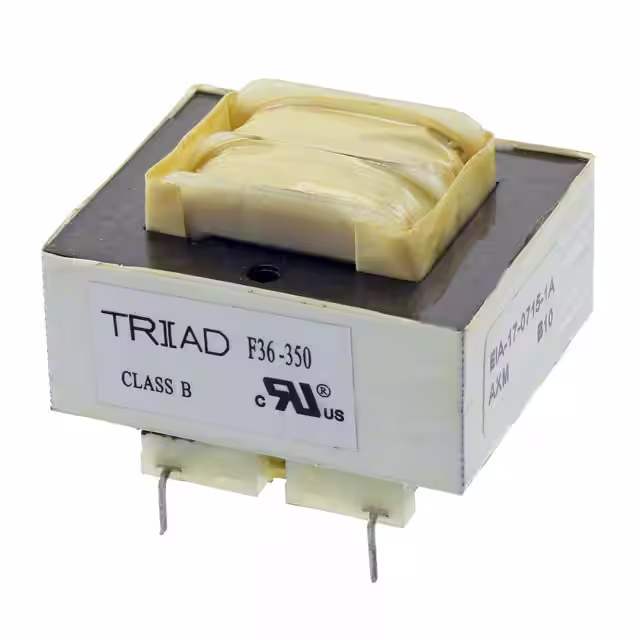

F36-350 PWR XFMR LAMINATED 12VA TH Triad Magnetics	3,548	8.74	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 700mA, Series 350mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms
F48-250 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,570	8.74	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 500mA, Series 250mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms
F56-220 PWR XFMR LAMINATED 12VA TH Triad Magnetics	2,208	8.74	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 28 V, Series 56V	Parallel 440mA, Series 220mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	36.50mm	2500Vrms
FP16-375-B PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,327	8.76	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 750mA, Series 375mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms
FP20-300-B PWR XFMR LAMINATED 6VA TH Triad Magnetics	2,014	8.76	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 600mA, Series 300mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms
FP24-250-B PWR XFMR LAMINATED 6VA TH Triad Magnetics	2,086	8.76	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 500mA, Series 250mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms
FP30-200-B PWR XFMR LAMINATED 6VA TH Triad Magnetics	2,390	8.76	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 15V, Series 30V	Parallel 400mA, Series 200mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	22.22mm	2000Vrms
DPC-20-220 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	3,691	8.77	RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 440mA, Series 220mA	Dual	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms
DPC-28-160 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	3,287	8.77	RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 320mA, Series 160mA	Dual	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms
DPC-10-440 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	3,360	8.77	RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 880mA, Series 440mA	Dual	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms

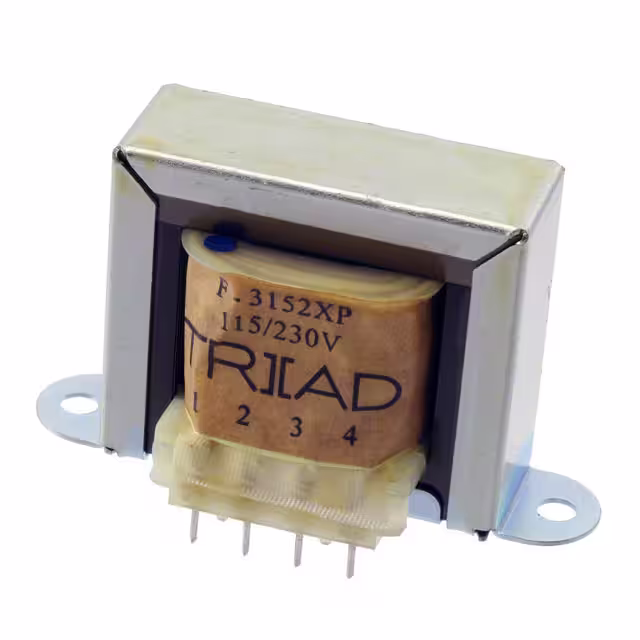

F-3152XP PWR XFMR LAMINATED 7.5VA CHAS MT Triad Magnetics	2,939	8.82	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V, 230V	Parallel 7.5V, Series 15V	Parallel 1A, Series 500mA	Dual	Dual	No	7.5VA	Chassis Mount	PC Pin	71.42mm L x 36.50mm W	41.28mm	1500Vrms

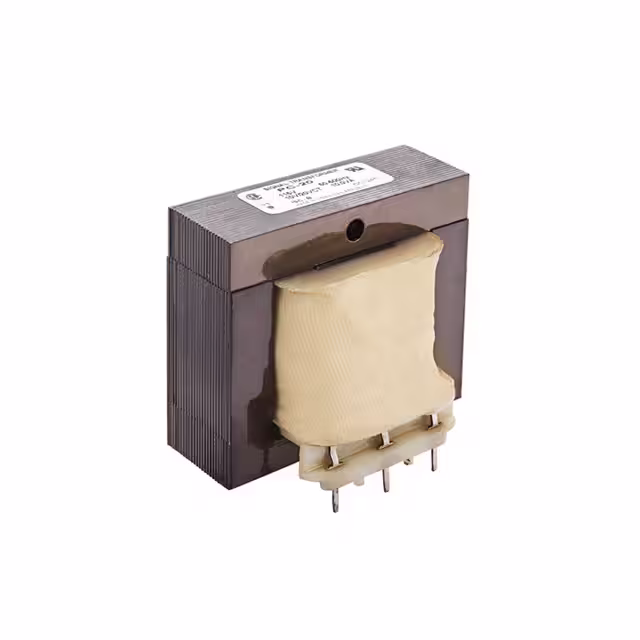

PC-10-1000 PWR XFMR LAMINATED 10VA TH Signal Transformer	2,615	8.83	RFQ	Datasheet	Bulk	PC	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 2A, Series 1A	Single	Dual	No	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.27mm	1500Vrms

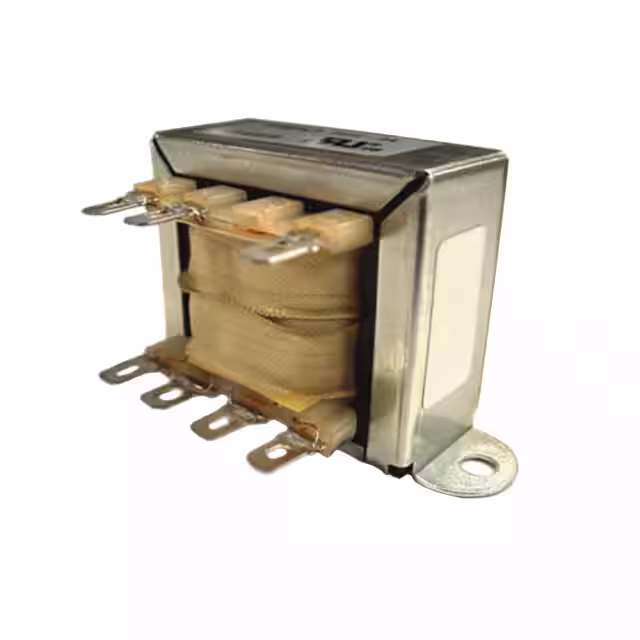

FD5-120-B PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	2,257	8.85	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V, 230V	120V	100mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
241-4-10 PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,442	8.86	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	10V	600mA	Single	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.30mm L x 33.30mm W	36.20mm	2500Vrms

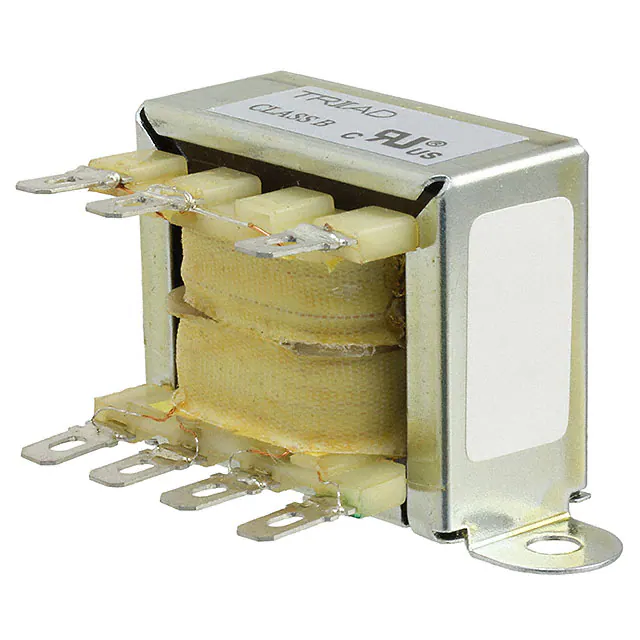

FD4-12 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	2,440	8.89	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	12.6V	500mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	65.07mm L x 31.75mm W	34.93mm	2500VAC
FD4-16 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	3,873	8.89	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	16V	400mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	65.07mm L x 31.75mm W	34.93mm	2500VAC
FD4-56 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	2,043	8.89	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	56V	110mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	65.07mm L x 31.75mm W	34.93mm	2500VAC

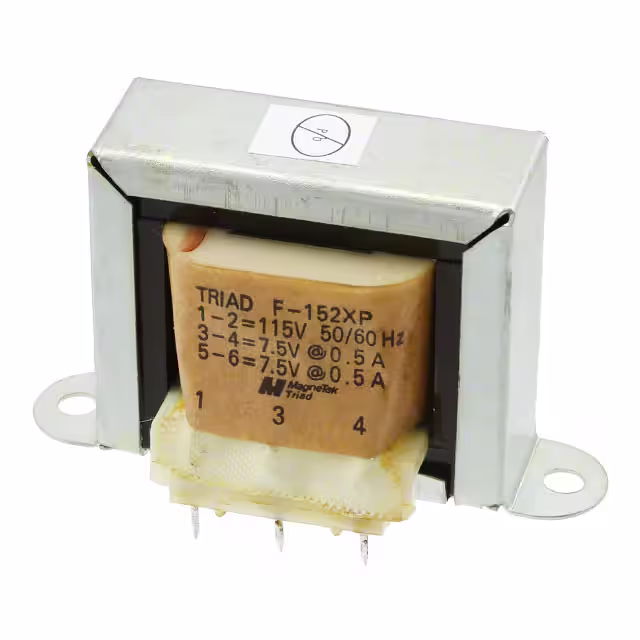

F-152XP PWR XFMR LAMINATED 7.5VA CHAS MT Triad Magnetics	2,598	8.96	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 7.5V, Series 15V	Parallel 1A, Series 500mA	Single	Dual	No	7.5VA	Chassis Mount	PC Pin	71.42mm L x 37.29mm W	41.28mm	1500Vrms
PC-28-160 PWR XFMR LAMINATED 4.4VA TH Signal Transformer	2,862	9.00	RFQ	Datasheet	Box	PC	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 320mA, Series 160mA	Single	Dual	No	4.4VA	Through Hole	PC Pin	41.30mm L x 31.80mm W	34.92mm	1500Vrms
