Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
B82806D0060A120 P300870 EFD20 POE TRANSFORMER EPCOS - TDK Electronics	3,834	6.13	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82806D	Active	-	-	-	-	Surface Mount	0.866 L x 1.181 W (22.00mm x 30.00mm)	-

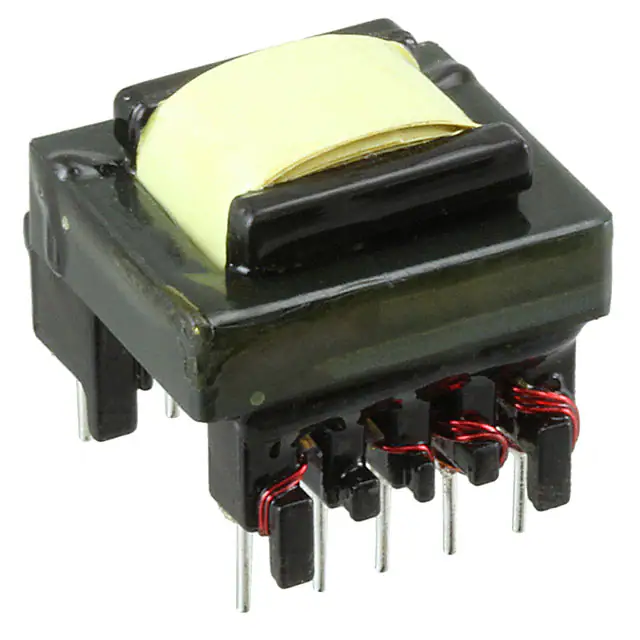

PA2653NL PULSE XFMR 910UH Pulse Electronics Power	2,715	0.00	RFQ	Datasheet	Tray	-	Active	-	910µH	-	-	Through Hole	0.920 L x 0.960 W (23.37mm x 24.38mm)	0.810 (20.57mm)
T3012NL XFRMR T3/DS3/E3/STS-1 1:2CT SMD Pulse Electronics Network	100	6.36	RFQ	Datasheet	Tube	-	Active	T3/E3 (Single)	40µH	-	1:2CT	Surface Mount	0.300 L x 0.275 W (7.62mm x 7.00mm)	0.250 (6.35mm)
H1200NLT XFRMR MODULE 2PORT 1:1 10/100 Pulse Electronics Network	3,136	6.72	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	1.125 L x 0.485 W (28.58mm x 12.32mm)	0.230 (5.84mm)
PE-68517LNLT XFRMR MODULE 1PORT 1:1 10/100B-T Pulse Electronics Network	100	7.21	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	1.000 L x 0.350 W (25.40mm x 8.89mm)	0.370 (9.40mm)
HX6164NLT TRANS MOD 1G 70W POE SMD Pulse Electronics Network	100	7.50	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HX6164NL	Active	LAN 1000 Base-T, Power over Ethernet (PoE)	120µH	-	1:1	Surface Mount	-	0.340 (8.64mm)

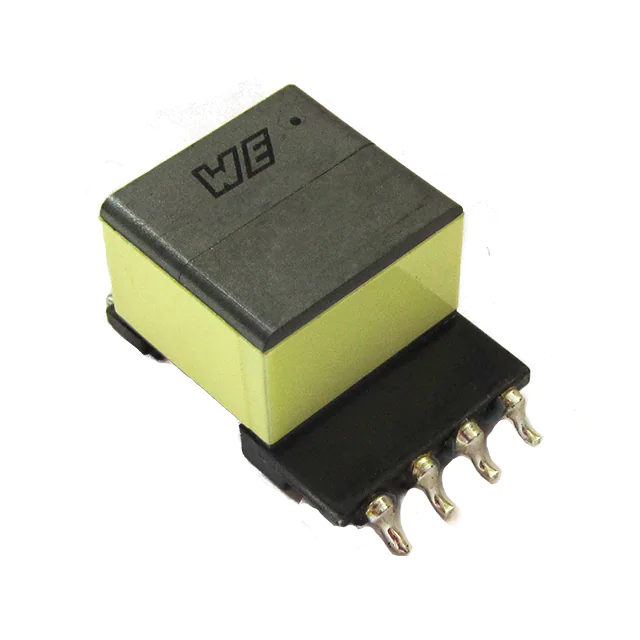

750510719 DIGITAL TRANSFORMER Würth Elektronik	3,477	7.68	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	1µH	-	1:1	Surface Mount	-	0.532 (13.50mm)
HD8005FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	3,152	10.61	RFQ	Datasheet	Tube	-	Active	HDBase-T	100µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.539 L x 0.591 W (13.70mm x 15.00mm)	0.225 (5.72mm)

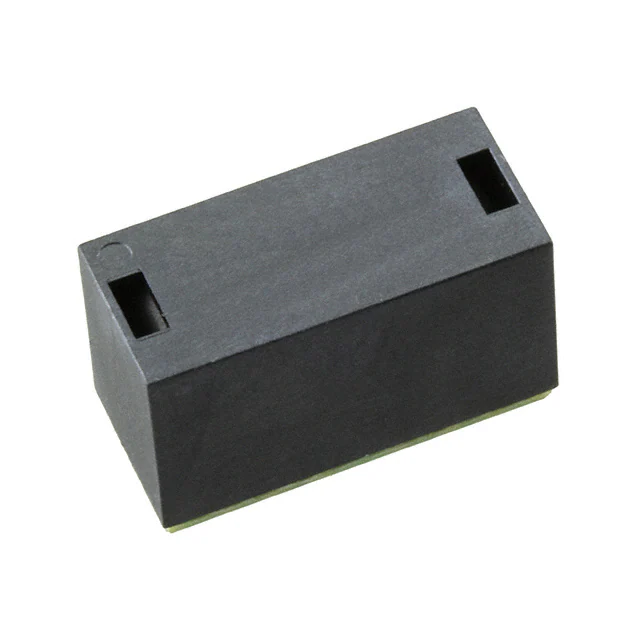

H6600NLT TRANSFORMER MODULE 10GBASE-T Pulse Electronics Network	3,236	10.76	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T	120µH	-	1:1	Surface Mount	0.680 L x 0.310 W (17.27mm x 7.87mm)	0.440 (11.18mm)
749052051 XFRMR LAN 10G BASE-T 1:1 120UH Würth Elektronik	306	11.67	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10G Base-T	120µH	-	1:1	Surface Mount	0.720 L x 0.579 W (18.29mm x 14.70mm)	0.346 (8.80mm)
H6101NL PULSE XFMR 1CT:1CT TX/RX Pulse Electronics Network	100	14.05	RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	120µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.285 (7.24mm)
MTBAUGDT250251 TRANSFORMER, GATE DRIVE 5MM, 250 Vishay Dale	3,259	14.72	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Gate Drive	473µH	30.6VµS	2.5:1	Surface Mount	-	0.220 (5.59mm)
R5033NL XFRMR ETHERNET MOD IND 1000B-T iNRCORE, LLC	2,298	16.00	RFQ	Datasheet	Tube	-	Active	LAN 1000 Base-T	350µH	-	-	Surface Mount	0.600 L x 0.430 W (15.24mm x 10.92mm)	0.340 (8.64mm)

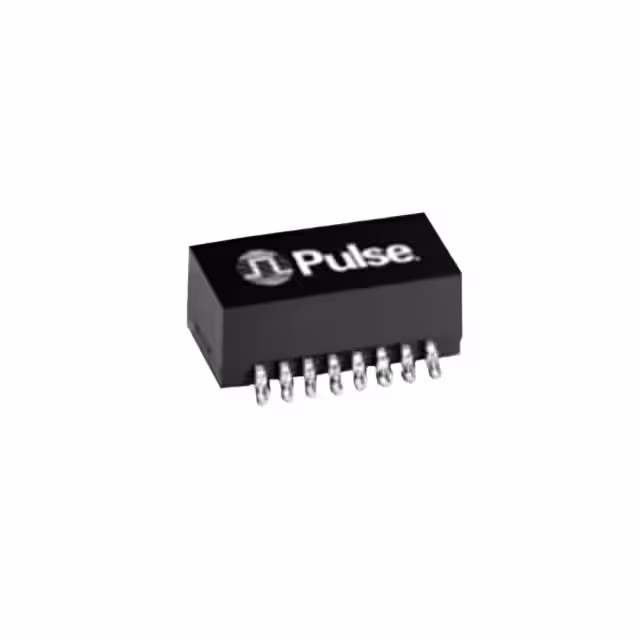

100B-1003NL EXTMP XFMR 100BT SMG COM NPB iNRCORE, LLC	3,243	16.00	RFQ	Datasheet	Bulk	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.500 L x 0.265 W (12.70mm x 6.73mm)	0.245 (6.22mm)

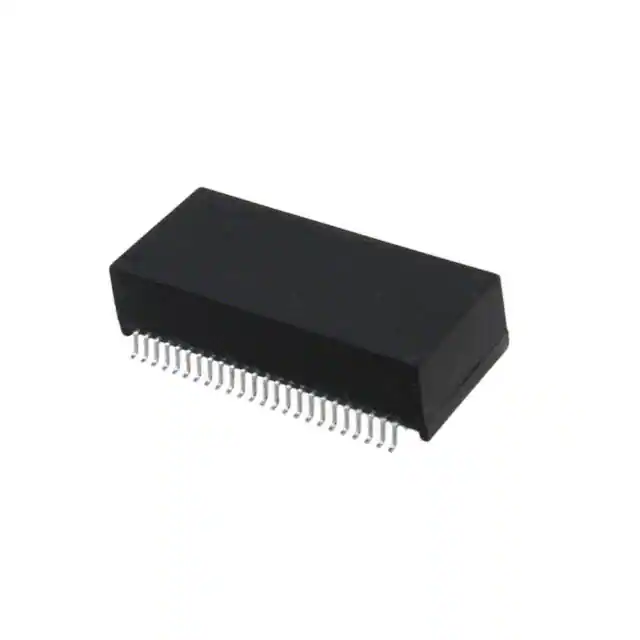

H6080NL XFRMR MODUL GIGABT 2PORT POE 1:1 Pulse Electronics Network	3,949	16.65	RFQ	Datasheet	Tube	Star Magnetics™	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.295 (7.49mm)
7490140112 TRANSFORMER WE-LAN MED 10/100BT Würth Elektronik	3,573	16.71	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.967 L x 0.669 W (24.55mm x 17.00mm)	0.427 (10.85mm)
MTBAUGDT250102-LF TRANSFORMER, GATE DRIVE 5MM, 250 Vishay Dale	2,102	17.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Gate Drive	264µH	22.4VµS	1:1:1	Surface Mount	-	0.220 (5.59mm)
749020022A XFRMR LAN 1000 BASE-T 1:1 350UH Würth Elektronik	3,708	17.11	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 1000 Base-T	350µH	-	1:1	Surface Mount	1.091 L x 0.295 W (27.70mm x 7.50mm)	0.335 (8.50mm)

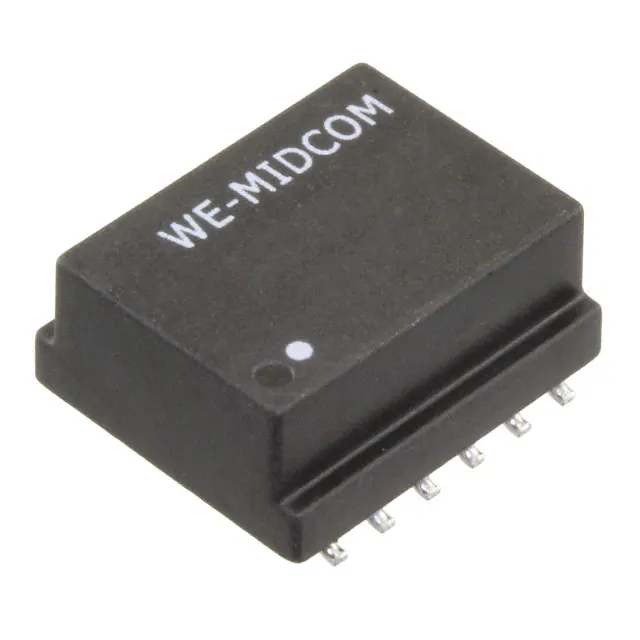

749014018 10/100 BASE-T SMD TRANSFORMER 1 Würth Elektronik	2,789	17.50	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.673 L x 0.581 W (17.10mm x 14.75mm)	0.341 (8.65mm)

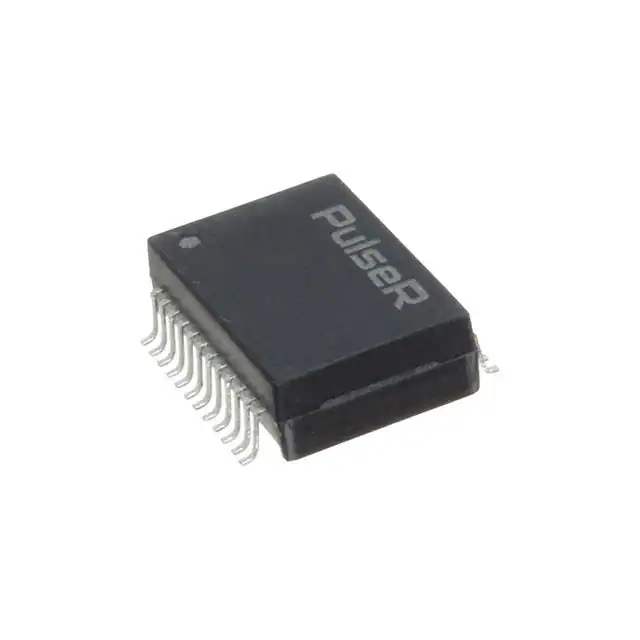

1000B-5001FNL XFMR CHOKE SHUNT QUAD 100 NPB iNRCORE, LLC	3,120	24.60	RFQ	Datasheet	Bulk	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.19mm)	0.235 (5.97mm)
