Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
4000A01E07AE999 PWR XFMR LAMINATED 40VA CHAS MT TE Connectivity Potter & Brumfield Relays	2,548	RFQ	Datasheet	Bulk	-	Obsolete	Laminated Core	120V	24V	-	Single	Single	No	40VA	Chassis Mount	Solder, Quick Connect	-	-	-

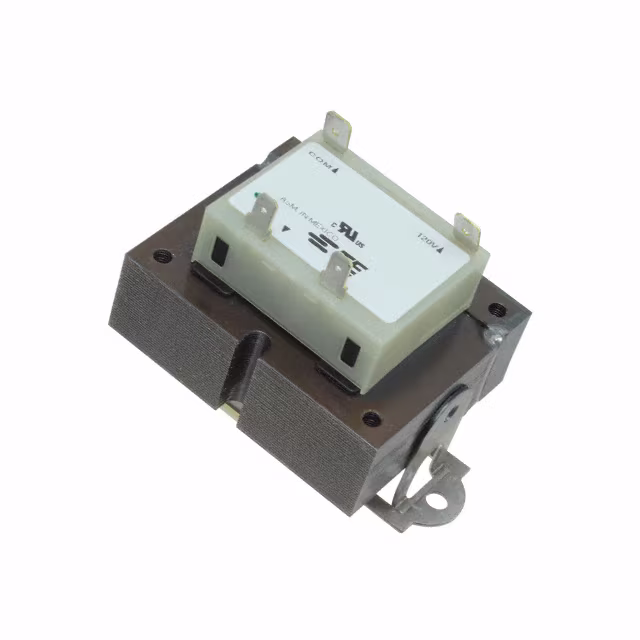

4000B01E07AE999 PWR XFMR LAMINATED 40VA CHAS MT TE Connectivity Potter & Brumfield Relays	3,741	RFQ	Datasheet	Bulk	-	Obsolete	Laminated Core	120V	24V	-	Single	Single	No	40VA	Chassis Mount	Solder, Quick Connect	-	-	-
4000Y02AW18K777 PWR XFMR TE Connectivity Potter & Brumfield Relays	3,060	RFQ		Bulk	4000	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
4000Y05E07K777 PWR XFMR TE Connectivity Potter & Brumfield Relays	2,078	RFQ		Bulk	4000, Products Unlimited	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
4000Y08J41K777 PWR XFMR TE Connectivity Potter & Brumfield Relays	3,211	RFQ		Bulk	4000	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
4000Y09AW18K777 PWR XFMR TE Connectivity Potter & Brumfield Relays	3,818	RFQ		Bulk	4000, Products Unlimited	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
4000Y09E07K777 PWR XFMR LAMINATED 40VA CHAS MT TE Connectivity Potter & Brumfield Relays	3,458	RFQ	Datasheet	Bulk	-	Active	Laminated Core	208V, 240V	24V	-	Single, Multiple Taps	Single	No	40VA	Chassis Mount	Solder, Quick Connect	-	-	-
4000Y09L15K777 PWR XFMR TE Connectivity Potter & Brumfield Relays	3,836	RFQ		Bulk	4000, Products Unlimited	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
4001-20CN15K777 PWR XFMR TE Connectivity Potter & Brumfield Relays	2,806	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
4600-01AZ13AE999 PWR XFMR LAMINATED 100VA CHAS MT TE Connectivity Potter & Brumfield Relays	2,520	RFQ	Datasheet	Bulk	-	Obsolete	Laminated Core	120V	24V	-	Single	Single	No	100VA	Chassis Mount	Solder, Quick Connect	76.20mm L x 63.50mm W	-	-
4600-01AZ13K999 PWR XFMR LAMINATED 100VA CHAS MT TE Connectivity Potter & Brumfield Relays	2,185	RFQ	Datasheet	Bulk	-	Obsolete	Laminated Core	120V	24V	-	Single	Single	No	100VA	Chassis Mount	Solder, Quick Connect	76.20mm L x 63.50mm W	-	-
7028GE PWR XFMR LAMINATED TH TE Connectivity Potter & Brumfield Relays	3,366	RFQ	Datasheet	Bulk	-	Obsolete	Laminated Core	-	16.6V	11A	Single	Single	No	-	Through Hole	PC Pin	76.20mm L x 72.97mm W	65.41mm	-
7226GE PWR XFMR LAMINATED TH TE Connectivity Potter & Brumfield Relays	2,272	RFQ	Datasheet	Bulk	-	Obsolete	Laminated Core	-	12.4V	5.5A	Single	Single	No	-	Through Hole	PC Pin	76.20mm L x 72.97mm W	65.41mm	-
7227GE PWR XFMR TE Connectivity Potter & Brumfield Relays	3,262	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
4900-9013RD63 PWR XFMR LAMINATED 12VA TH TE Connectivity Passive Product	3,493	RFQ	Datasheet	Bulk	4900	Obsolete	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	-	Dual	Dual	No	12VA	Through Hole	PC Pin	22.61mm L x 72.97mm W	35.81mm	-
4900-9013RE64 PWR XFMR LAMINATED 20VA TH TE Connectivity Passive Product	3,680	RFQ	Datasheet	Bulk	4900	Obsolete	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	-	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 38.10mm W	35.81mm	-
4900-9024RE64 PWR XFMR LAMINATED 20VA TH TE Connectivity Passive Product	3,920	RFQ	Datasheet	Bulk	4900	Obsolete	Laminated Core	115V, 230V	Parallel 12V, Series 24V	-	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 38.10mm W	35.81mm	-
85115-P1S0 PWR XFMR Talema Group LLC	2,559	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
B-2331 PWR XFMR 600V TO 12V 3 PHAS Signal Transformer	3,037	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-

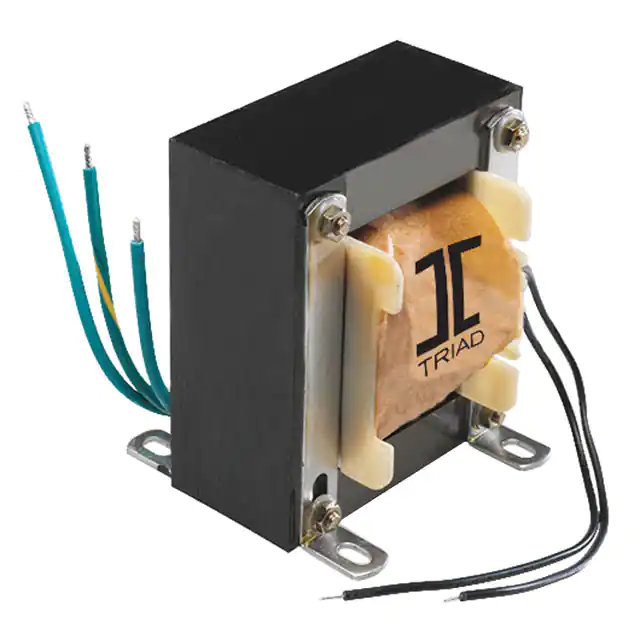

F-1000U PWR XFMR LAMINATED CHAS MT Triad Magnetics	3,508	RFQ	Datasheet	Box	-	Obsolete	Laminated Core	115V, 230V	24V	21A	Dual	Single	Yes	-	Chassis Mount	Wire Leads	111.13mm L x 88.90mm W	133.35mm	1500Vrms
