Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
BV042-5205.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	2,518	RFQ	Datasheet	-	-	Obsolete	Laminated Core	230V	24V	208mA	Single	Single	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-
BV042-5210.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	2,971	RFQ	Datasheet	-	-	Obsolete	Laminated Core	230V	Parallel 6V, Series 12V	Parallel 834mA, Series 417mA	Single	Dual	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-
BV042-5213.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	3,300	RFQ	Datasheet	-	-	Obsolete	Laminated Core	230V	Parallel 9V, Series 18V	Parallel 556mA, Series 278mA	Single	Dual	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-
BV042-5219.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	3,586	RFQ	Datasheet	-	-	Obsolete	Laminated Core	230V	Parallel 15V, Series 30V	Parallel 334mA, Series 167mA	Single	Dual	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-
BV042-5222.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	2,033	RFQ	Datasheet	-	-	Obsolete	Laminated Core	230V	Parallel 18V, Series 36V	Parallel 278mA, Series 139mA	Single	Dual	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-

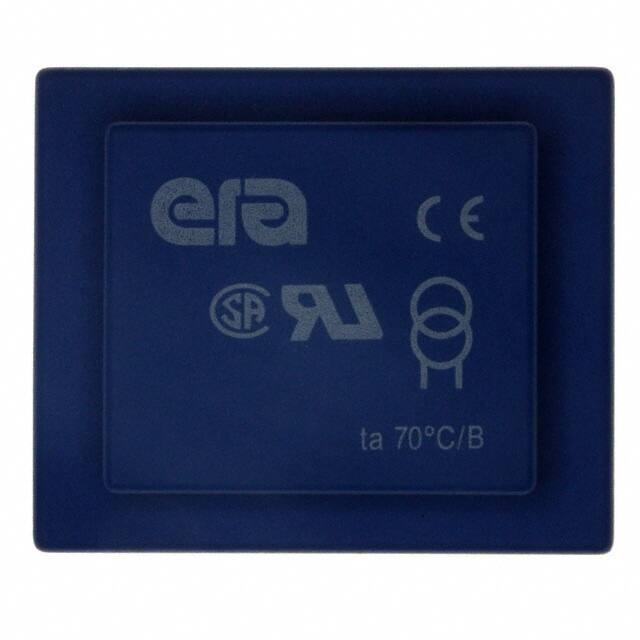

BV042-5228.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	3,406	RFQ	Datasheet	-	-	Obsolete	Laminated Core	230V	Parallel 24V, Series 48V	Parallel 208mA, Series 104mA	Single	Dual	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-
BV042-5325.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	2,929	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V	6V	834mA	Dual	Single	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-
BV042-5328.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	2,429	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V	9V	556mA	Dual	Single	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-
BV042-5331.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	3,358	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V	12V	417mA	Dual	Single	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-
BV042-5334.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	3,503	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V	15V	334mA	Dual	Single	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-
BV042-5337.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	3,443	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V	18V	278mA	Dual	Single	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-
BV042-5343.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	2,704	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V	24V	208mA	Dual	Single	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-
BV042-5348.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	3,191	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V, 230V	Parallel 6V, Series 12V	Parallel 834mA, Series 417mA	Dual	Dual	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-
BV042-5351.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	3,841	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V, 230V	Parallel 9V, Series 18V	Parallel 556mA, Series 278mA	Dual	Dual	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-
BV042-5357.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	3,634	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V, 230V	Parallel 15V, Series 30V	Parallel 334mA, Series 167mA	Dual	Dual	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-
BV042-5360.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	2,648	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 278mA, Series 139mA	Dual	Dual	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-
BV042-5366.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	2,339	RFQ	Datasheet	-	-	Obsolete	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 208mA, Series 104mA	Dual	Dual	No	5VA	Through Hole	PC Pin	45.50mm L x 38.50mm W	32.00mm	-
BV042-5381.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	3,748	RFQ	Datasheet	-	-	Obsolete	Laminated Core	230V	6V	834mA	Single	Single	No	5VA	Through Hole	PC Pin	55.00mm L x 37.00mm W	33.00mm	-
BV042-5382.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	3,726	RFQ	Datasheet	-	-	Obsolete	Laminated Core	230V	9V	556mA	Single	Single	No	5VA	Through Hole	PC Pin	55.00mm L x 37.00mm W	33.00mm	-
BV042-5383.0 PWR XFMR LAMINATED 5VA TH Pulse Electronics Power	3,384	RFQ	Datasheet	-	-	Obsolete	Laminated Core	230V	12V	417mA	Single	Single	No	5VA	Through Hole	PC Pin	55.00mm L x 37.00mm W	33.00mm	-
