Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
MPI-200-40 PWR XFMR LAMINATED 200VA CHAS MT Signal Transformer	2,280	132.72	RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 20V, Series 40V	Parallel 10A, Series 5A	Dual, Multiple Taps	Dual	No	200VA	Chassis Mount	Terminal Block	95.30mm L x 113.30mm W	93.10mm	4000Vrms
MTG0050A CONTROL TRANSFORMER,50VA,240/480 Siemens	2,412	133.41	RFQ	Datasheet	Box	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
E100EWA PWR XFMR LAMINATED 100VA CHAS MT SolaHD	3,220	151.55	RFQ	Datasheet	Bulk	SBE	Active	Laminated Core	-	-	-	-	-	No	100VA	Chassis Mount	Solder, Quick Connect	117.10mm L x 86.10mm W	-	-
E100EWB PWR XFMR LAMINATED 100VA CHAS MT SolaHD	2,863	151.55	RFQ	Datasheet	Bulk	SBE	Active	Laminated Core	-	-	-	-	-	No	100VA	Chassis Mount	Solder, Quick Connect	117.10mm L x 86.10mm W	-	-
M4L-3-3 PWR XFMR LAMINATED 300VA CHAS MT Signal Transformer	2,656	134.55	RFQ	Datasheet	Bulk	M4L	Active	Laminated Core	115V, 100V	115V	2.6A	Dual, Multiple Taps	Single	No	300VA	Chassis Mount	Terminal Block	106.68mm L x 103.51mm W	95.30mm	4000Vrms
XF-00160-2012 PWR XFMR TORO 160VA CHAS MT Amgis, LLC	2,692	134.84	RFQ	Datasheet	Bulk	-	Active	Toroidal	117V	Parallel 12V, Series 24V	Parallel 6.66A, Series 13.32A	Dual	Dual	No	160VA	Chassis Mount	Wire Leads	96.52mm Dia	55.88mm	4000Vrms
XF-00160-2015 PWR XFMR TORO 160VA CHAS MT Amgis, LLC	3,492	134.84	RFQ	Datasheet	Bulk	-	Active	Toroidal	117V	Parallel 15V, Series 30V	Parallel 10.66A, Series 5.33A	Dual	Dual	No	160VA	Chassis Mount	Wire Leads	96.52mm Dia	55.88mm	4000Vrms
XF-00160-2018 PWR XFMR TORO 160VA CHAS MT Amgis, LLC	3,385	134.84	RFQ	Datasheet	Bulk	-	Active	Toroidal	117V	Parallel 18V, Series 36V	Parallel 8.88A, Series 4.44A	Dual	Dual	No	160VA	Chassis Mount	Wire Leads	101.60mm Dia	55.88mm	4000Vrms
XF-00160-2024 PWR XFMR TORO 160VA CHAS MT Amgis, LLC	2,450	134.84	RFQ	Datasheet	Bulk	-	Active	Toroidal	117V	Parallel 24V, Series 48V	Parallel 6.66A, Series 3.33A	Dual	Dual	No	160VA	Chassis Mount	Wire Leads	101.60mm Dia	55.88mm	4000Vrms
MT0075E CONTROL TRANSFORMER,75VA,550/575 Siemens	2,093	135.21	RFQ	Datasheet	Box	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
E150EW PWR XFMR LAMINATED 150VA CHAS MT SolaHD	3,113	153.96	RFQ	Datasheet	Bulk	SBE	Active	Laminated Core	-	-	-	-	-	No	150VA	Chassis Mount	Solder, Quick Connect	114.30mm L x 113.80mm W	-	-

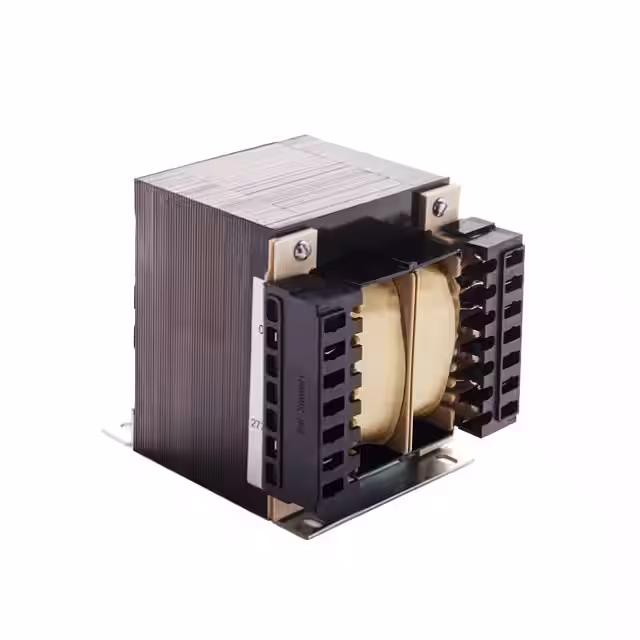

SLT-450 PWR XFMR LAMINATED 450VA CHAS MT Signal Transformer	3,289	136.89	RFQ	Datasheet	Bulk	SLT	Active	Laminated Core	277V	120V	3.8A	Single	Single	Yes	450VA	Chassis Mount	Terminal Block	113.28mm L x 110.00mm W	114.30mm	4000Vrms
XF-00160-2030 PWR XFMR TORO 160VA CHAS MT Amgis, LLC	3,106	137.86	RFQ	Datasheet	Bulk	-	Active	Toroidal	117V	Parallel 30V, Series 60V	Parallel 5.32A, Series 2.66A	Dual	Dual	No	160VA	Chassis Mount	Wire Leads	101.60mm Dia	55.88mm	4000Vrms
MT0075C CONTROL TRANSFORMER,75VA,120/240 Siemens	3,660	138.37	RFQ	Datasheet	Box	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
MT0075D CONTROL TRANSFORMER,75VA,115/230 Siemens	2,985	138.37	RFQ	Datasheet	Box	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
MT0075B CONTROL TRANSFORMER,75VA,240/480 Siemens	3,946	138.37	RFQ	Datasheet	Box	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
MT0075I CONTROL TRANSFORMER,75VA,380/400 Siemens	2,772	138.37	RFQ	Datasheet	Box	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
E300E PWR XFMR LAMINATED 300VA CHAS MT SolaHD	2,022	156.96	RFQ	Datasheet	Bulk	SBE	Active	Laminated Core	120V, 240V	24V	-	Dual	Single	No	300VA	Chassis Mount	Solder, Quick Connect	-	115.10mm	-
MPI-300-10 PWR XFMR LAMINATED 300VA CHAS MT Signal Transformer	3,797	139.09	RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 5V, Series 10V	Parallel 60A, Series 30A	Dual, Multiple Taps	Dual	No	300VA	Chassis Mount	Terminal Block	104.80mm L x 113.10mm W	98.20mm	4000Vrms
MPI-300-12 PWR XFMR LAMINATED 300VA CHAS MT Signal Transformer	2,917	139.09	RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 6V, Series 12V	Parallel 50A, Series 25A	Dual, Multiple Taps	Dual	No	300VA	Chassis Mount	Terminal Block	104.80mm L x 113.10mm W	98.20mm	4000Vrms
