Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
VPS16-2700-B PWR XFMR LAMINATED 43VA CHAS MT Triad Magnetics	2,251	18.79	RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 5.4A, Series 2.7A	Dual	Dual	No	43VA	Chassis Mount	Solder, Quick Connect	58.67mm L x 50.80mm W	54.10mm	4000Vrms
VPS230-190-B PWR XFMR LAMINATED 43VA CHAS MT Triad Magnetics	3,480	18.79	RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 380mA, Series 190mA	Dual	Dual	No	43VA	Chassis Mount	Solder, Quick Connect	58.67mm L x 50.80mm W	68.33mm	4000Vrms
VPS28-1500-B PWR XFMR LAMINATED 43VA CHAS MT Triad Magnetics	2,644	18.79	RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 3A, Series 1.5A	Dual	Dual	No	43VA	Chassis Mount	Solder, Quick Connect	58.67mm L x 50.80mm W	68.33mm	4000Vrms
VPS36-1200-B PWR XFMR LAMINATED 43VA CHAS MT Triad Magnetics	2,783	18.79	RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 2.4A, Series 1.2A	Dual	Dual	No	43VA	Chassis Mount	Solder, Quick Connect	58.67mm L x 50.80mm W	68.33mm	4000Vrms
L01-6343 PWR XFMR TORO 10VA TH Amgis, LLC	3,980	18.80	RFQ	Datasheet	Tray	L01	Active	Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 666mA, Series 333mA	Dual	Dual	No	10VA	Through Hole	PC Pin	55.00mm L x 55.00mm W	26.00mm	4000Vrms
F-184X PWR XFMR LAMINATED 28VA CHAS MT Triad Magnetics	3,551	18.87	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	28V	1A	Single	Single	Yes	28VA	Chassis Mount	Wire Leads	93.65mm L x 57.15mm W	58.72mm	1500Vrms
F-224X PWR XFMR LAMINATED 37.8VA CHAS Triad Magnetics	3,817	18.87	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	12.6V	3A	Single	Single	No	37.8VA	Chassis Mount	Wire Leads	95.25mm L x 53.98mm W	57.15mm	1500Vrms
F-31X PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	2,432	18.87	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	10V	3A	Single	Single	Yes	30VA	Chassis Mount	Wire Leads	95.25mm L x 53.98mm W	54.76mm	2000Vrms
FD7-10 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	2,710	18.89	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	10V	5A	Dual	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC

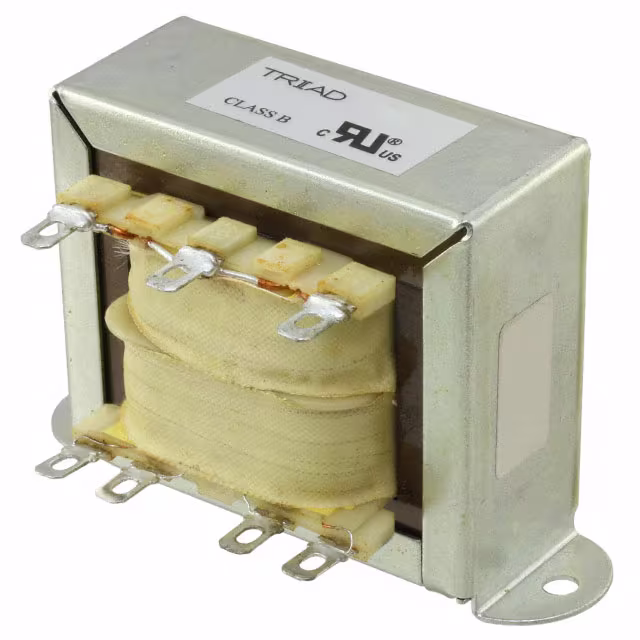

FD7-12 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	2,253	18.89	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	12.6V	4A	Dual	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC

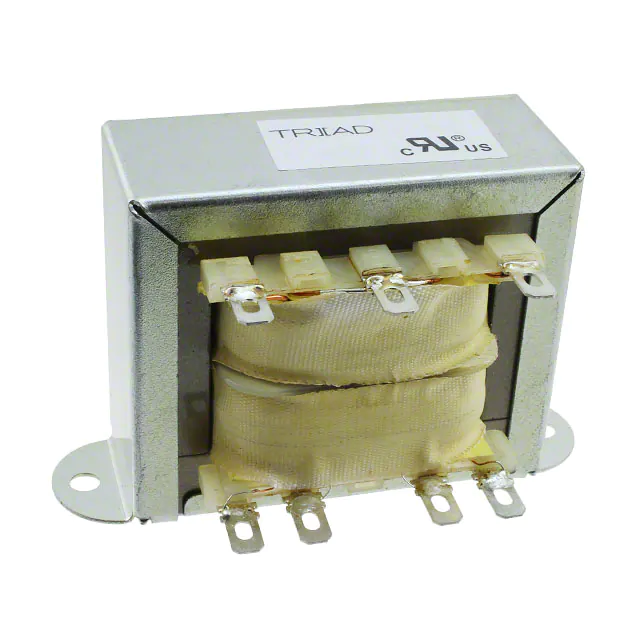

FD7-28 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	3,134	18.89	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	28V	2A	Dual	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC
FD7-48 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	2,913	18.89	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	48V	1.2A	Dual	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC
FD7-56 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	3,164	18.89	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	56V	1A	Dual	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC
A41-43-515 PWR XFMR LAMINATED 43VA CHAS MT Signal Transformer	3,080	18.91	RFQ	Datasheet	Bulk	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 15V	Parallel 2A, Series 250mA	Dual	Dual	Yes	43VA	Chassis Mount	Solder, Quick Connect	79.40mm L x 54.40mm W	68.20mm	4000Vrms
LP-12-3800 PWR XFMR SEMI-TORO 48VA TH Signal Transformer	3,907	24.74	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 7.6A, Series 3.8A	Dual	Dual	No	48VA	Through Hole	PC Pin	79.20mm L x 63.50mm W	34.90mm	1500Vrms
VPP20-2800-B PWR XFMR LAMINATED 56VA TH Triad Magnetics	2,297	18.95	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 5.6A, Series 2.8A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.02mm	4000Vrms
VPP24-2330-B PWR XFMR LAMINATED 56VA TH Triad Magnetics	3,761	18.95	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 4.66A, Series 2.33A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.02mm	4000Vrms
VPP36-1560-B PWR XFMR LAMINATED 56VA TH Triad Magnetics	3,916	18.95	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 3.12A, Series 1.56A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.02mm	4000Vrms
VPP10-5600-B PWR XFMR LAMINATED 56VA TH Triad Magnetics	2,295	18.95	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 11.2A, Series 5.6A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.02mm	4000Vrms
VPP12-4400-B PWR XFMR LAMINATED 56VA TH Triad Magnetics	3,728	18.95	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 8.8A, Series 4.4A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.02mm	4000Vrms
