Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
L01-6321 PWR XFMR TORO 5VA TH Amgis, LLC	3,913	16.08	RFQ	Datasheet	Tray	L01	Active	Toroidal	115V, 230V	Parallel 9V, Series 18V	Parallel 556mA, Series 278mA	Dual	Dual	No	5VA	Through Hole	PC Pin	49.70mm L x 49.70mm W	19.50mm	4000Vrms
L01-6322 PWR XFMR TORO 5VA TH Amgis, LLC	3,394	16.08	RFQ	Datasheet	Tray	L01	Active	Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 416mA, Series 208mA	Dual	Dual	No	5VA	Through Hole	PC Pin	49.70mm L x 49.70mm W	19.50mm	4000Vrms
L01-6323 PWR XFMR TORO 5VA TH Amgis, LLC	3,230	16.08	RFQ	Datasheet	Tray	L01	Active	Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 334mA, Series 167mA	Dual	Dual	No	5VA	Through Hole	PC Pin	49.70mm L x 49.70mm W	19.50mm	4000Vrms
L01-6324 PWR XFMR TORO 5VA TH Amgis, LLC	3,970	16.08	RFQ	Datasheet	Tray	L01	Active	Toroidal	115V, 230V	Parallel 18V, Series 36V	Parallel 278mA, Series 139mA	Dual	Dual	No	5VA	Through Hole	PC Pin	49.70mm L x 49.70mm W	19.50mm	4000Vrms
XF-10208 PWR XFMR TORO 3.2VA CHAS MT Amgis, LLC	2,158	16.10	RFQ	Datasheet	Bulk	-	Active	Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 133mA, Series 67mA	Dual	Dual	No	3.2VA	Chassis Mount	Wire Leads	42.00mm Dia	17.50mm	4000Vrms
XF-10206 PWR XFMR TORO 3.2VA CHAS MT Amgis, LLC	2,879	16.10	RFQ	Datasheet	Bulk	-	Active	Toroidal	115V, 230V	Parallel 7V, Series 14V	Parallel 229mA, Series 115mA	Dual	Dual	No	3.2VA	Chassis Mount	Wire Leads	42.00mm Dia	17.50mm	4000Vrms
XF-10207 PWR XFMR TORO 3.2VA CHAS MT Amgis, LLC	3,924	16.10	RFQ	Datasheet	Bulk	-	Active	Toroidal	115V, 230V	Parallel 9V, Series 18V	Parallel 178mA, Series 89mA	Dual	Dual	No	3.2VA	Chassis Mount	Wire Leads	42.00mm Dia	17.50mm	4000Vrms

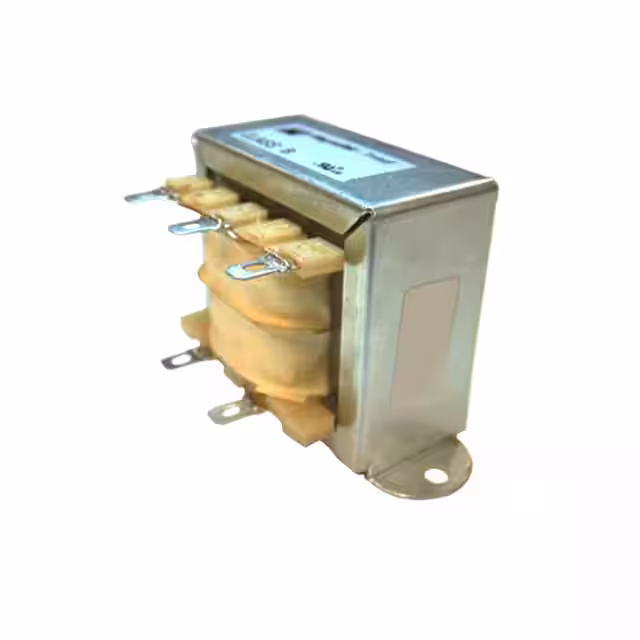

F7-24-B PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	2,982	16.11	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	24V	2.4A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC
F-236Z PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	3,139	16.13	RFQ	Datasheet	Box	Multiple Secondary	Active	Laminated Core	115V	Parallel 12V, Series 24V	Parallel 500mA, Series 250mA	Single	Dual	Yes	12VA	Chassis Mount	Solder, Quick Connect	73.03mm L x 41.28mm W	58.72mm	1500Vrms
L01-6331 PWR XFMR TORO 7VA TH Amgis, LLC	2,748	16.23	RFQ	Datasheet	Tray	L01	Active	Toroidal	115V, 230V	Parallel 9V, Series 18V	Parallel 778mA, Series 389mA	Dual	Dual	No	7VA	Through Hole	PC Pin	49.70mm L x 49.70mm W	23.10mm	4000Vrms
L01-6334 PWR XFMR TORO 7VA TH Amgis, LLC	2,322	16.23	RFQ	Datasheet	Tray	L01	Active	Toroidal	115V, 230V	Parallel 18V, Series 36V	Parallel 388mA, Series 194mA	Dual	Dual	No	7VA	Through Hole	PC Pin	49.70mm L x 49.70mm W	23.10mm	4000Vrms
L01-6335 PWR XFMR TORO 7VA TH Amgis, LLC	3,367	16.23	RFQ	Datasheet	Tray	L01	Active	Toroidal	115V, 230V	Parallel 22V, Series 44V	Parallel 318mA, Series 159mA	Dual	Dual	No	7VA	Through Hole	PC Pin	49.70mm L x 49.70mm W	23.10mm	4000Vrms
VPS10-2500-B PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	3,870	16.28	RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 5A, Series 2.5A	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	58.67mm	4000Vrms
VPS20-1250-B PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	3,249	16.28	RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 2.5A, Series 1.25A	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	58.67mm	4000Vrms
VPS230-110-B PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	2,635	16.28	RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 220mA, Series 110mA	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	58.67mm	4000Vrms
VPS28-900-B PWR XFMR LAMINATED 25VA CHAS MT Triad Magnetics	3,428	16.28	RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 1.8A, Series 900mA	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	50.80mm L x 49.28mm W	58.67mm	4000Vrms

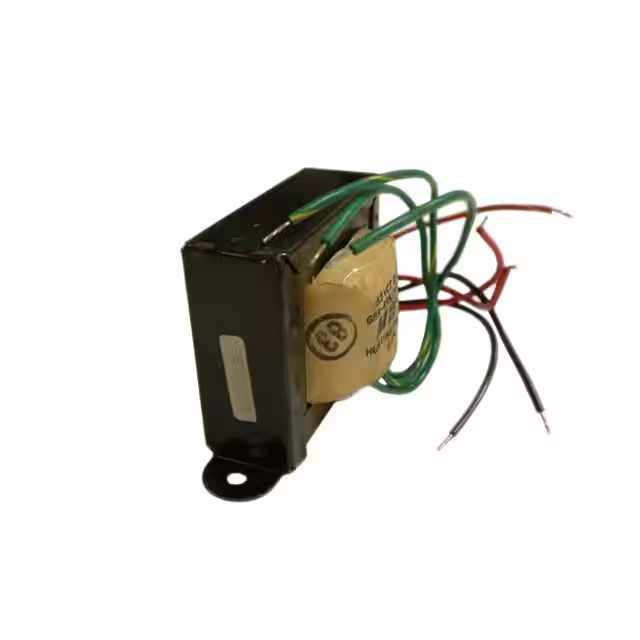

F-195X PWR XFMR LAMINATED 19.63VA CHAS Triad Magnetics	3,236	16.28	RFQ	Datasheet	Box	Multiple Secondary	Active	Laminated Core	115V	15.5V, 32V	750mA, 250mA	Single	Dual	Yes	19.63VA	Chassis Mount	Wire Leads	95.25mm L x 47.63mm W	57.15mm	1500Vrms
F-118X PWR XFMR LAMINATED 16.8VA CHAS Triad Magnetics	3,896	16.30	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	24V	700mA	Single	Single	Yes	16.8VA	Chassis Mount	Wire Leads	82.55mm L x 50.80mm W	50.80mm	1500Vrms
F-124X PWR XFMR LAMINATED 22.4VA CHAS Triad Magnetics	3,772	16.30	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	28V	800mA	Single	Single	Yes	22.4VA	Chassis Mount	Wire Leads	82.55mm L x 50.80mm W	49.20mm	1500Vrms
F-180X PWR XFMR LAMINATED 10VA CHAS MT Triad Magnetics	3,173	16.30	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	10V	1A	Single	Single	Yes	10VA	Chassis Mount	Wire Leads	84.12mm L x 44.45mm W	49.20mm	1500Vrms
