Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
FS20-300-C2 PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,094	5.93	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 600mA, Series 300mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	4200Vrms
FS16-070 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	2,714	5.94	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 140mA, Series 70mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	23.80mm	2500Vrms
FS12-090-B PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	2,286	5.94	RFQ	Datasheet	Bulk	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 180mA, Series 90mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	23.80mm	2500Vrms
VPP10-500-B PWR XFMR LAMINATED 5VA TH Triad Magnetics	3,290	6.05	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 1A, Series 500mA	Dual	Dual	No	5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	34.93mm	4000Vrms
VPP28-180-B PWR XFMR LAMINATED 5VA TH Triad Magnetics	3,592	6.05	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 360mA, Series 180mA	Dual	Dual	No	5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	34.93mm	4000Vrms

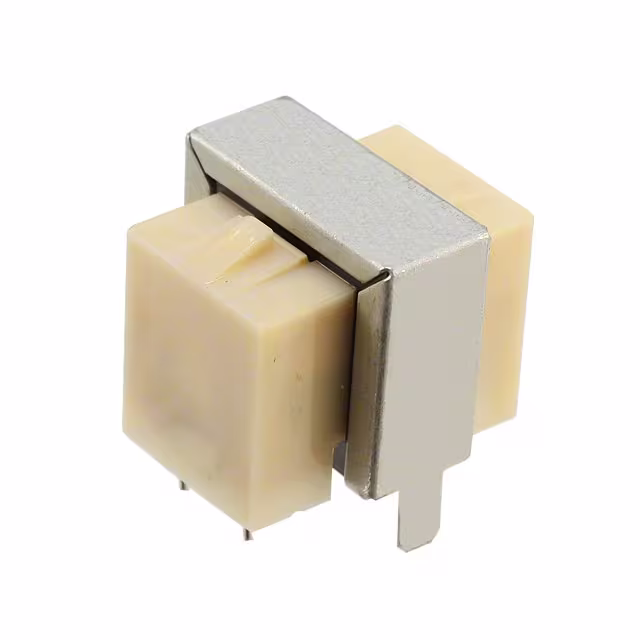

10A009 PWR XFMR LAMINATED TH Tamura	2,088	6.12	RFQ	Datasheet	Bulk	-	Active	Laminated Core	230V	10V	50mA	Single	Single, Multiple Taps	Yes	-	Through Hole	PC Pin	29.46mm L x 28.45mm W	27.94mm	4000Vrms
ST-2-20 PWR XFMR LAMINATED 1.1VA TH Signal Transformer	3,665	6.36	RFQ	Datasheet	Box	ST	Active	Laminated Core	115V	Parallel 10V, Series 20V	Parallel 110mA, Series 55mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	24.60mm	2500Vrms
ST-2-36 PWR XFMR LAMINATED 1.1VA TH Signal Transformer	2,060	6.36	RFQ	Datasheet	Box	ST	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 60mA, Series 30mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	24.60mm	2500Vrms
ST-2-120 PWR XFMR LAMINATED 1.1VA TH Signal Transformer	3,307	6.36	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 20mA, Series 10mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	24.60mm	2500Vrms
ST-2-56 PWR XFMR LAMINATED 1.1VA TH Signal Transformer	2,356	6.36	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 40mA, Series 20mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	24.60mm	2500Vrms
FS28-85 PWR XFMR LAMINATED 2.4VA TH Triad Magnetics	3,857	6.40	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 170mA, Series 85mA	Dual	Dual	No	2.4VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	30.15mm	2500Vrms
FS10-250-B PWR XFMR LAMINATED 2.4VA TH Triad Magnetics	2,218	6.40	RFQ	Datasheet	Bulk	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 500mA, Series 250mA	Dual	Dual	No	2.4VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	30.15mm	2500Vrms
FS28-85-B PWR XFMR LAMINATED 2.4VA TH Triad Magnetics	3,518	6.40	RFQ	Datasheet	Bulk	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 170mA, Series 85mA	Dual	Dual	No	2.4VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	30.15mm	2500Vrms

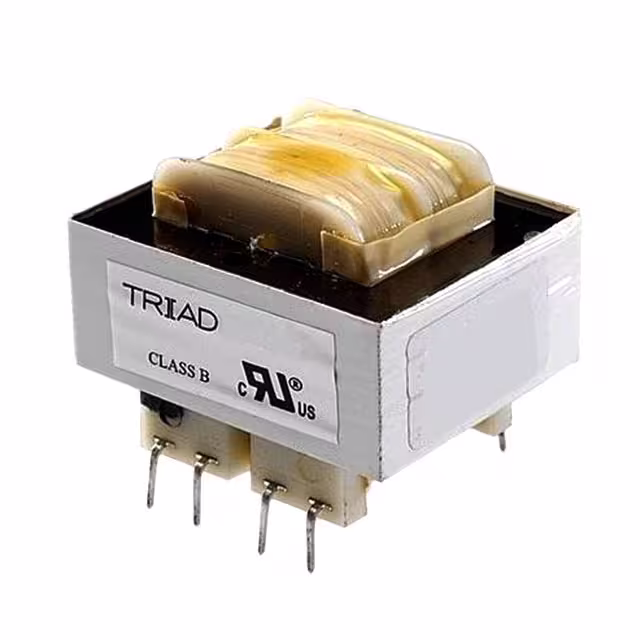

FS36-65-B PWR XFMR LAMINATED 2.4VA TH Triad Magnetics	2,936	6.40	RFQ	Datasheet	Bulk	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 130mA, Series 65mA	Dual	Dual	No	2.4VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	30.15mm	2500Vrms
F120-010 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	2,127	6.42	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 20mA, Series 10mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	2500Vrms
F12-090 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	3,827	6.42	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 180mA, Series 90mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	2500Vrms
F16-070 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	2,756	6.42	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 140mA, Series 70mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	2500Vrms
F28-040 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	2,297	6.42	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 80mA, Series 40mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	2500Vrms
F36-030 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	3,215	6.42	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 60mA, Series 30mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	2500Vrms
F56-020 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	3,186	6.42	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 40mA, Series 20mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	2500Vrms
