Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	Ratings	OperatingTemperature	MountingType	Height(Max)	Size/Dimension
Z1810C162BPWZT POWER LINE HIGH IMPEDANCE FERRIT KEMET	544	0.91	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-PWZ	Last Time Buy	Power Line	1	1.6 kOhms @ 100 MHz	2A	130mOhm	-	-40°C ~ 125°C	Surface Mount	0.110 (2.80mm)	0.177 L x 0.098 W (4.50mm x 2.50mm)
Z1810C102BPWZT POWER LINE HIGH IMPEDANCE FERRIT KEMET	269	0.91	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Z-PWZ	Last Time Buy	Power Line	1	1 Ohms @ 100 MHz	3A	60mOhm	-	-40°C ~ 125°C	Surface Mount	0.110 (2.80mm)	0.177 L x 0.098 W (4.50mm x 2.50mm)
74279224171 FERRITE BEAD 170 OHM 2220 1LN Würth Elektronik	189	1.16	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-MPSB	Active	-	1	170 Ohms @ 100 MHz	4A	15mOhm	-	-55°C ~ 125°C	Surface Mount	0.070 (1.77mm)	0.220 L x 0.200 W (5.59mm x 5.08mm)

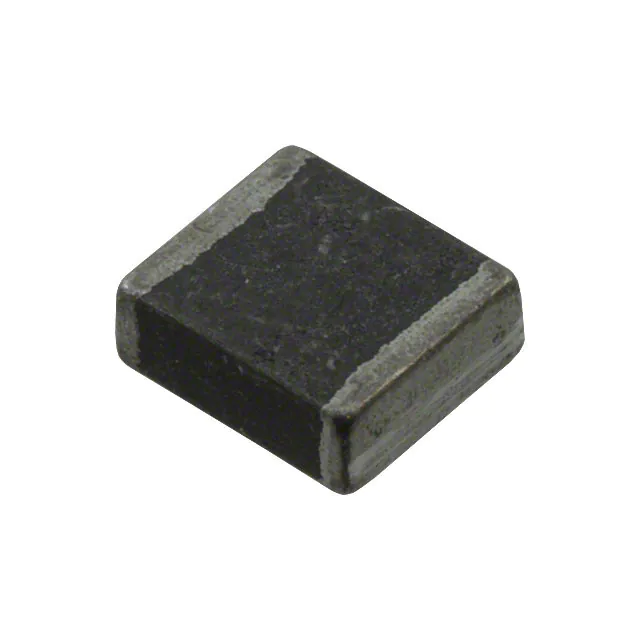

74279224551 FERRITE BEAD 550 OHM 2220 1LN Würth Elektronik	778	1.36	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-MPSB	Active	-	1	550 Ohms @ 100 MHz	4A	35mOhm	-	-55°C ~ 125°C	Surface Mount	0.087 (2.22mm)	0.220 L x 0.200 W (5.59mm x 5.08mm)

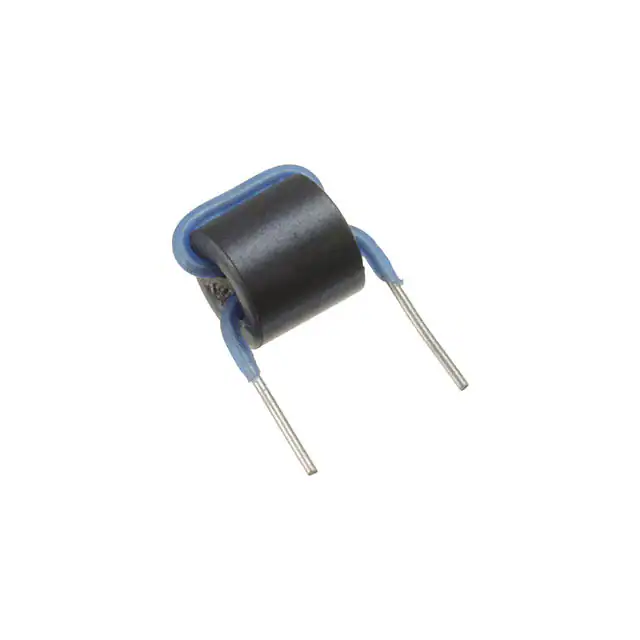

B-8 BEAD (WINDING) 2.5A KEMET	485	1.37	RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-
4221R-1 FERRITE BEAD 47 OHM 2SMD 1LN API Delevan Inc.	524	1.58	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	4221R	Active	-	1	47 Ohms @ 100 MHz	5A	-	-	-55°C ~ 125°C	Surface Mount	0.128 (3.25mm)	0.197 L x 0.120 W (5.00mm x 3.05mm)
742792907 FERRITE BEAD 240 OHM 2SMD 1LN Würth Elektronik	274	2.87	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-PF	Active	-	1	240 Ohms @ 100 MHz	6A	20mOhm	-	-40°C ~ 125°C	Surface Mount	0.315 (8.00mm)	0.472 L x 0.472 W (12.00mm x 12.00mm)
FBH451616T-101Y-S FB HI 1806 100 OHM 3A .04DC CAL-CHIP ELECTRONICS, INC.	2,477	0.03	RFQ	Datasheet	Tape & Reel (TR)	FBH	Active	Power Line	1	100 Ohms @ 100 MHz	3A	40mOhm	-	-	Surface Mount	0.071 (1.80mm)	0.177 L x 0.063 W (4.50mm x 1.60mm)
FBU451616T-720Y-S FB ULTRA 1806 72 OHM 6A .01DC CAL-CHIP ELECTRONICS, INC.	3,522	0.05	RFQ	Datasheet	Tape & Reel (TR)	FBU	Active	Power Line	1	72 Ohms @ 100 MHz	6A	10mOhm	-	-	Surface Mount	0.071 (1.80mm)	0.177 L x 0.063 W (4.50mm x 1.60mm)
FB453215T-151Y-S FBEAD 1812 150 OHM .2DC 500MA CAL-CHIP ELECTRONICS, INC.	2,178	0.06	RFQ	Datasheet	Tape & Reel (TR)	FB	Active	Signal Line	1	150 Ohms @ 100 MHz	500mA	200mOhm	-	-	Surface Mount	0.067 (1.70mm)	0.177 L x 0.126 W (4.50mm x 3.20mm)
FB453215T-700Y-S FBEAD 1812 70 OHM .4DC 800MA CAL-CHIP ELECTRONICS, INC.	2,325	0.08	RFQ	Datasheet	Tape & Reel (TR)	FB	Active	Signal Line	1	70 Ohms @ 100 MHz	800mA	400mOhm	-	-	Surface Mount	0.067 (1.70mm)	0.177 L x 0.126 W (4.50mm x 3.20mm)
FBU451616T-600Y-S FB ULTRA 1806 60 OHM 6A .008DC CAL-CHIP ELECTRONICS, INC.	3,089	0.08	RFQ	Datasheet	Tape & Reel (TR)	FBU	Active	Power Line	1	60 Ohms @ 100 MHz	6A	8mOhm	-	-	Surface Mount	0.071 (1.80mm)	0.177 L x 0.063 W (4.50mm x 1.60mm)
FBH451616T-181Y-S-H FB HI 1806 180 OHM 3.5A .04DC CAL-CHIP ELECTRONICS, INC.	2,469	0.10	RFQ	Datasheet	Tape & Reel (TR)	FBH	Active	Power Line	1	180 Ohms @ 100 MHz	3.5A	40mOhm	-	-55°C ~ 125°C	Surface Mount	0.071 (1.80mm)	0.177 L x 0.063 W (4.50mm x 1.60mm)
FB453215T-121Y-S FBEAD 1812 120 OHM .2DC 500MA CAL-CHIP ELECTRONICS, INC.	3,079	0.10	RFQ	Datasheet	Tape & Reel (TR)	FB	Active	Signal Line	1	120 Ohms @ 100 MHz	500mA	200mOhm	-	-	Surface Mount	0.067 (1.70mm)	0.177 L x 0.126 W (4.50mm x 3.20mm)
FBH451616T-102Y-S FB HI 1806 1K OHM 1.5A .09DC CAL-CHIP ELECTRONICS, INC.	3,987	0.10	RFQ	Datasheet	Tape & Reel (TR)	FBH	Active	Power Line	1	1 kOhms @ 100 MHz	1.5A	90mOhm	-	-	Surface Mount	0.071 (1.80mm)	0.177 L x 0.063 W (4.50mm x 1.60mm)
FBH451616T-181Y-S FB HI 1806 180 OHM 3A .04DC CAL-CHIP ELECTRONICS, INC.	2,698	0.10	RFQ	Datasheet	Tape & Reel (TR)	FBH	Active	Power Line	1	180 Ohms @ 100 MHz	3A	40mOhm	-	-	Surface Mount	0.071 (1.80mm)	0.177 L x 0.063 W (4.50mm x 1.60mm)
FBU451616T-750Y-S FBULTRA 1806 75 OHM 6A .008DC CAL-CHIP ELECTRONICS, INC.	3,531	0.10	RFQ	Datasheet	Tape & Reel (TR)	FBU	Active	Power Line	1	75 Ohms @ 100 MHz	6A	8mOhm	-	-55°C ~ 125°C	Surface Mount	0.071 (1.80mm)	0.177 L x 0.063 W (4.50mm x 1.60mm)
FB322513T-600Y-S FBEAD 1210 60 OHM .3DC 400MA CAL-CHIP ELECTRONICS, INC.	3,560	0.10	RFQ	Datasheet	Tape & Reel (TR)	FB	Active	Signal Line	1	60 Ohms @ 100 MHz	400mA	300mOhm	-	-	Surface Mount	0.059 (1.50mm)	0.126 L x 0.098 W (3.20mm x 2.50mm)
FBH451616T-600Y-S FB HI 1806 60 OHM 3A .04DC CAL-CHIP ELECTRONICS, INC.	3,209	0.10	RFQ	Datasheet	Tape & Reel (TR)	FBH	Active	Power Line	1	60 Ohms @ 100 MHz	3A	40mOhm	-	-	Surface Mount	0.071 (1.80mm)	0.177 L x 0.063 W (4.50mm x 1.60mm)
GZ1608E102TF FERRITE BEAD 100025%OHM 0603 1LN Shenzhen Sunlord Electronics Co., Ltd.	3,362	0.10	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	GZ	Active	Signal Line	1	1 kOhms @ 100 MHz	200mA	600mOhm	-	-55°C ~ 125°C	Surface Mount	0.037 (0.95mm)	0.063 L x 0.031 W (1.60mm x 0.80mm)
